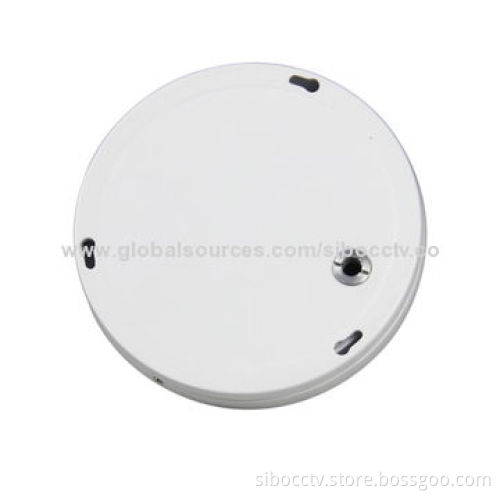

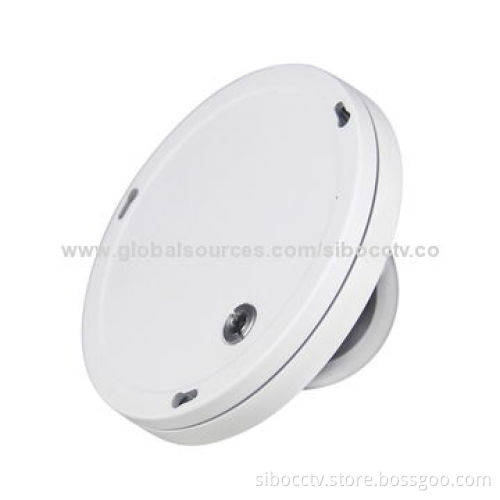

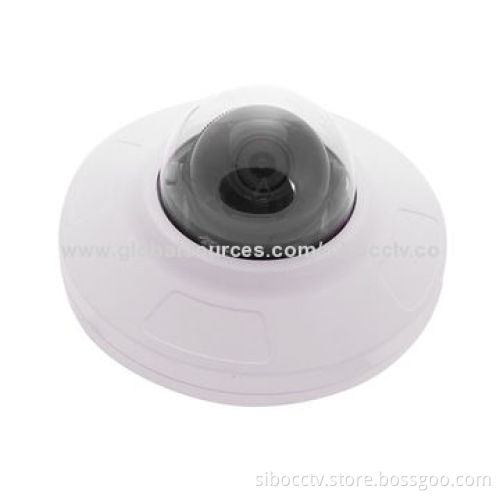

2.0-megapixel TI Network Mini Dome Camera

2.0-megapixel TI Network Mini Dome Camera

Get Latest Price

Payment Type:: T/T, PayPal or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal or Western Union

Product Description

Features:

1/3" progressive scan CMOS AR0331
H.264 and MJPEG dual-stream encoding
Maximum 25/30fps at 1080P(1920x1080)
Day/night (ICR), 2DNR, AWB, AGC, BLC
Multiple network monitoring: web viewer, CMS
3.6mm fixed lens
IP66, PoE

Descriptions:

Model: SIBO-3200-2.0IP

Camera:

Image sensor: 1/3" progressive scan CMOS
Effective pixels (H x V): 1920x1080
Scanning system: progressive
Shutter speed: auto/manual, 1/3~1/10000s
Minimum illumination:
- Color: 0.1 lux
- B/W: 0.01 lux, 0 lux (IR on)
S/N ratio: >50dB

Camera features:

Maximum IR LED length: N/A
Backlight compensation: BLC
White balance: auto
Gain control: auto/manual
Noise reduction: 2D
Privacy masking: supported

Lens:

Focal length: 3.6mm
Maximum aperture: F1.6
Angle of view: 75.7°
Mount type: MTV mount (interchangeable lens)

Video:

Compression: H.264/MJPEG

Frame rate:

Main stream: 1080P (1920*1080) 25fps/HD 720P (1280*720) 25fps
Sub stream: D1 704*576 25fps/CIF 25fps
Bit rate: 32-8000kbps, supports CBR/VBR

Network:

Ethernet: RJ-45 (10/100Base-T)
Protocol: TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPNP
ONVIF: ONVIF Ver. 2.0
PC: Windows XP/Windows 7/Window 8
Browser: IE6.0~10.0 Google 30.0.1599.59 Firefox 25.2.1 Safari 5.1.7
Email: gmail yahoo 163.com qq.com
Maximum user access: 10 users

Auxiliary interface:

Memory slot: N/A
TF card (memory card): N/A

General:

Power supply: DC 12V
PoE: N/A
Power consumption: <6W
Working environment: -10~+60°C, 10~90%
Ingress protection: IP66
Dimensions: 120*120*67.5mm
Weight: 0.36kg
Package dimension: 140*140*110mm

1/3" progressive scan CMOS AR0331

H.264 and MJPEG dual-stream encoding

Maximum 25/30fps at 1080P(1920x1080)

Day/night (ICR), 2DNR, AWB, AGC, BLC

Multiple network monitoring: web viewer, CMS

3.6mm fixed lens

IP66, PoE

Model: SIBO-3200-2.0IP

Image sensor: 1/3" progressive scan CMOS

Effective pixels (H x V): 1920x1080

Scanning system: progressive

Shutter speed: auto/manual, 1/3~1/10000s

Minimum illumination:

Color: 0.1 lux
B/W: 0.01 lux, 0 lux (IR on)

S/N ratio: >50dB

Color: 0.1 lux

B/W: 0.01 lux, 0 lux (IR on)

Maximum IR LED length: N/A

Backlight compensation: BLC

White balance: auto

Gain control: auto/manual

Noise reduction: 2D

Privacy masking: supported

Focal length: 3.6mm

Maximum aperture: F1.6

Angle of view: 75.7°

Mount type: MTV mount (interchangeable lens)

Compression: H.264/MJPEG

Main stream: 1080P (1920*1080) 25fps/HD 720P (1280*720) 25fps

Sub stream: D1 704*576 25fps/CIF 25fps

Bit rate: 32-8000kbps, supports CBR/VBR

Ethernet: RJ-45 (10/100Base-T)

Protocol: TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPNP

ONVIF: ONVIF Ver. 2.0

PC: Windows XP/Windows 7/Window 8

Browser: IE6.0~10.0 Google 30.0.1599.59 Firefox 25.2.1 Safari 5.1.7

Email: gmail yahoo 163.com qq.com

Maximum user access: 10 users

Memory slot: N/A

TF card (memory card): N/A

Power supply: DC 12V

PoE: N/A

Power consumption: <6W

Working environment: -10~+60°C, 10~90%

Ingress protection: IP66

Dimensions: 120*120*67.5mm

Weight: 0.36kg

Package dimension: 140*140*110mm
