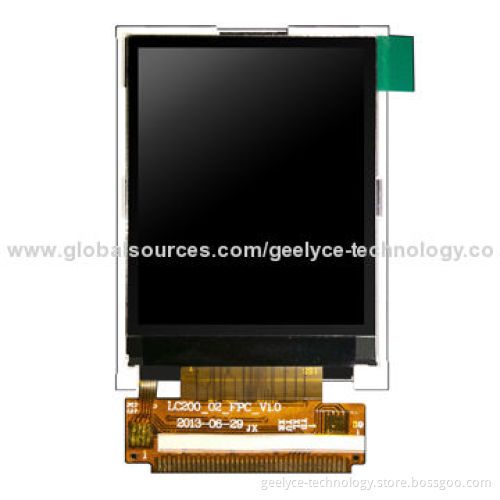

2.0-inch TFT LCD Module with 176 RGB x 220P High-resolution, 8/16 Bits Interface and LED Backlight
  • 2.0-inch TFT LCD Module with 176 RGB x 220P High-resolution, 8/16 Bits Interface and LED Backlight
2.0-inch TFT LCD Module with 176 RGB x 220P High-resolution, 8/16 Bits Interface and LED Backlight

2.0-inch TFT LCD Module with 176 RGB x 220P High-resolution, 8/16 Bits Interface and LED Backlight

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Screen size: 2.0 inches (diagonal)
    • Resolution (W x H): 176 x RGB x 220 pixels
    • Display modes: normally white and transmissive
    • Driver element: a-Si TFT active matrix
    • Color depth: 262K
    • Viewing direction: 12'O clock
    • Viewing angle: 50/50/50/30°
    • Brightness: 200cd/m²
    • Color configuration: RGB vertical stripe
    • Backlight unit: LEDs x 3 pieces
    • Interface: MCU 80-system 8/16-bit data bus 27-pin
    • Touch panel: without (touch panel mode for wire resistance optional)
    • Drive IC: ST7775R
    • Dimensions:
      • Outline (W x H x T): 41.50 x 49.10 x 2.45mm
      • Number of dots (W x H): 176 x 220 dots
      • Viewing area (W x H): 31.68 x 39.60mm
      • Active area (W x H): 31.68 x 39.60mm
      • Pixel pitch (W x H): 0.0727 x 0.219mm
      • Dots size (W x H): 0.0607 x 0.207mm
  • Screen size: 2.0 inches (diagonal)
  • Resolution (W x H): 176 x RGB x 220 pixels
  • Display modes: normally white and transmissive
  • Driver element: a-Si TFT active matrix
  • Color depth: 262K
  • Viewing direction: 12'O clock
  • Viewing angle: 50/50/50/30°
  • Brightness: 200cd/m²
  • Color configuration: RGB vertical stripe
  • Backlight unit: LEDs x 3 pieces
  • Interface: MCU 80-system 8/16-bit data bus 27-pin
  • Touch panel: without (touch panel mode for wire resistance optional)
  • Drive IC: ST7775R
  • Dimensions:
    • Outline (W x H x T): 41.50 x 49.10 x 2.45mm
    • Number of dots (W x H): 176 x 220 dots
    • Viewing area (W x H): 31.68 x 39.60mm
    • Active area (W x H): 31.68 x 39.60mm
    • Pixel pitch (W x H): 0.0727 x 0.219mm
    • Dots size (W x H): 0.0607 x 0.207mm
  • Outline (W x H x T): 41.50 x 49.10 x 2.45mm
  • Number of dots (W x H): 176 x 220 dots
  • Viewing area (W x H): 31.68 x 39.60mm
  • Active area (W x H): 31.68 x 39.60mm
  • Pixel pitch (W x H): 0.0727 x 0.219mm
  • Dots size (W x H): 0.0607 x 0.207mm
