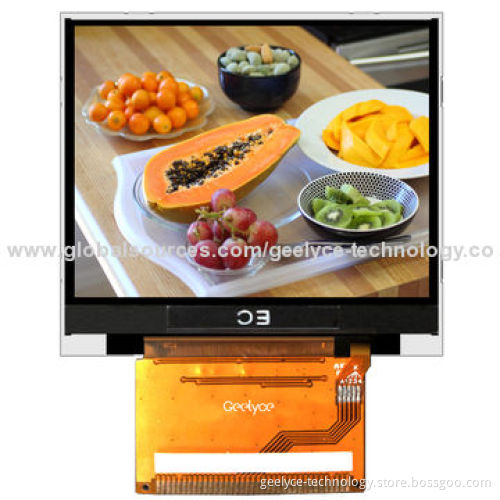

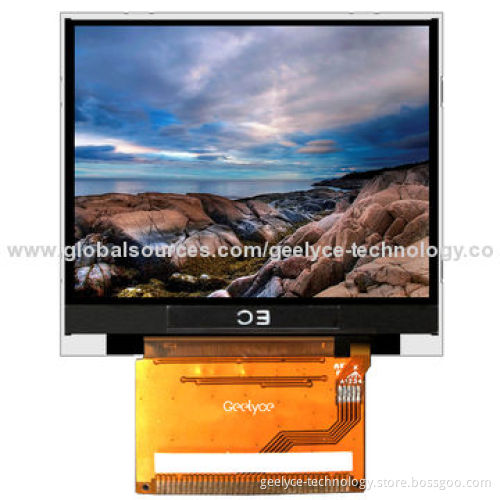

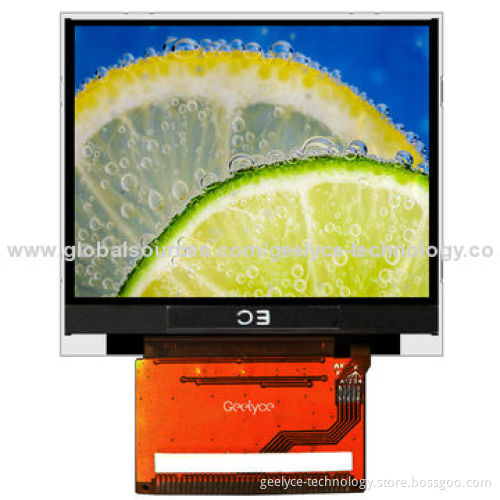

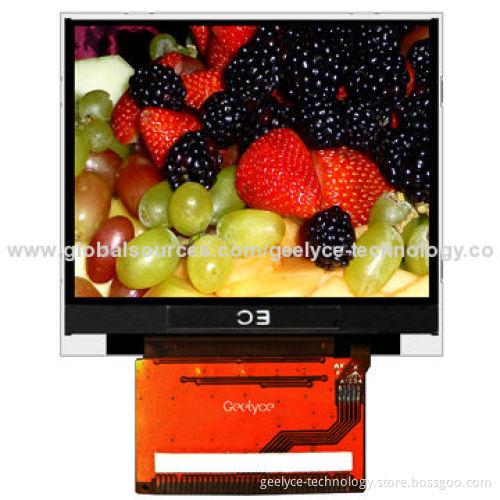

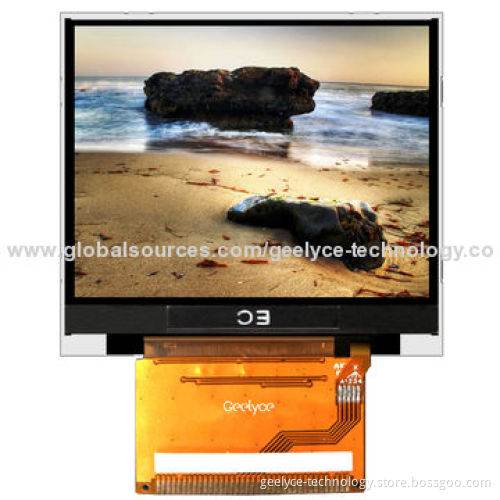

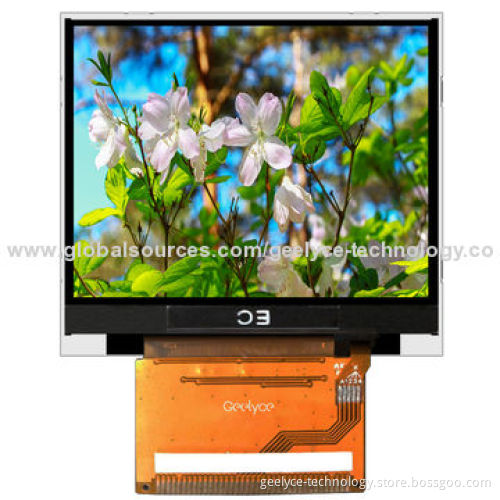

2.31-inch LCD Panel, 8/16-bit Interface, 320 RGB x 240P ResolutionNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Screen size: 2.31-inch (diagonal)

Resolution (W x H): 320 x RGB x 240 pixels

Display modes: normally white, transmissive

Driver element: a-Si TFT active matrix

Color depth: 262K

Viewing direction: 12 'O clock

Viewing angle: 60/35°

Brightness: 200cd/m²

Color configuration RGB vertical stripe

Backlight unit: LED x 4 pieces

Interface: MCU 80-system 8/16-bit data bus 40-pin and SPI

Touch panel: without (touch panel mode for wire resistance and optional)

Drive IC: ILI9342C

Dimensions:

Outline (W x H x T): 50.80 x 45.60 x 2.25mm

Viewing area (W x H): 46.75 x 35.06mm

Active area (W x H): 46.75 x 35.06mm

Pixel pitch (W x H): 0.0727 x 0.219mm

Dots size (W x H): 0.0607 x 0.207mm
