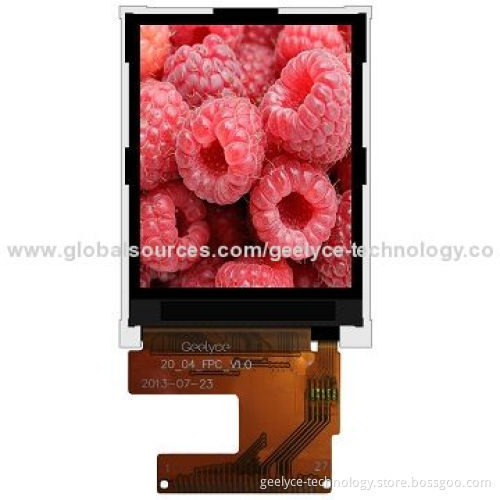

2.0-inch Mobile Phone LCD, 176 x RGB x 220P High-resolution, LED BacklightNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Screen size: 2.0 inches (diagonal)

Resolution (W x H): 176 x RGB x 220 pixels

Display mode: normally white, transmissive

Driver element: a-Si TFT active matrix

Color depth: 262K

Viewing direction: 12 O'clock

Viewing angle: 50/50/50/30°

Brightness: 200cd/m²

Color configuration: RGB vertical stripe

Backlight unit: LEDs x 3 pieces

Interface: MCU 80-system 8/16-bit data bus 27-pin

Touch panel: without (touch panel mode for wire resistance optional)

Drive IC: ST7775R

Dimensions:

Outline (W x H x T): 41.50 x 49.10 x 2.45mm

Number of dots (W x H): 176 x 220 dots

Viewing area (W x H): 31.68 x 39.60mm

Active area (W x H): 31.68 x 39.60mm

Pixel pitch (W x H): 0.0727 x 0.219mm

Dots size (W x H): 0.0607 x 0.207mm
