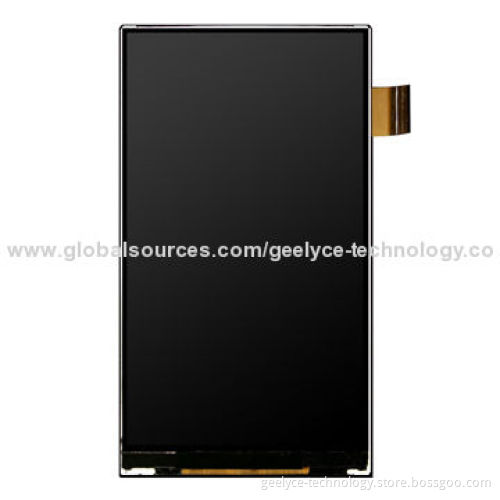

4.5-inch TFT LCD Module, LED Backlight with 540 RGB x 960P Resolution, 18/24 Bits Interface

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Screen size: 4.5-inch (diagonal)
Drive IC: HX8369A
Resolution: 540 RGB x 960 pixels
Display modes: normally black and transmissive
Driver element: a-Si TFT active matrix
Color depth: 262,000K/16M
Viewing direction: all
Viewing angle: 80/80/80/80°
Brightness: 300cd/m²
Operating temperature: -20 to 70°C
Storage temperature: -30 to 80°C
Color configuration RGB vertical stripe
Backlight unit: LED x 10 pieces
Interface: MCU 80-system 18/24-bit data bus 40-pin
Touch panel: without (touch panel mode for wire resistance and optional)
Compliant with the RoHS Directive
Dimensions:
- Outline (W x H x T): 59.54 x 109.30 x 1.9mm
- Active area (W x H): 55.44 x 98.64mm
- Pixel pitch (W x H): 0.0727 x 0.219mm
- Dots size (W x H): 0.0607 x 0.207mm

Applications:

Mobile phones and PDAs/consumer electronics/automotive/telecoms and data transfers/medical instruments/security managements/signs and displays/point of sales, EPOS/energy controls/amusement and gambling machines/white goods and medical machines

Screen size: 4.5-inch (diagonal)

Drive IC: HX8369A

Resolution: 540 RGB x 960 pixels

Display modes: normally black and transmissive

Driver element: a-Si TFT active matrix

Color depth: 262,000K/16M

Viewing direction: all

Viewing angle: 80/80/80/80°

Brightness: 300cd/m²

Operating temperature: -20 to 70°C

Storage temperature: -30 to 80°C

Color configuration RGB vertical stripe

Backlight unit: LED x 10 pieces

Interface: MCU 80-system 18/24-bit data bus 40-pin

Touch panel: without (touch panel mode for wire resistance and optional)

Compliant with the RoHS Directive

Dimensions:

Outline (W x H x T): 59.54 x 109.30 x 1.9mm
Active area (W x H): 55.44 x 98.64mm
Pixel pitch (W x H): 0.0727 x 0.219mm
Dots size (W x H): 0.0607 x 0.207mm

Outline (W x H x T): 59.54 x 109.30 x 1.9mm

Active area (W x H): 55.44 x 98.64mm

Pixel pitch (W x H): 0.0727 x 0.219mm

Dots size (W x H): 0.0607 x 0.207mm

Mobile phones and PDAs/consumer electronics/automotive/telecoms and data transfers/medical instruments/security managements/signs and displays/point of sales, EPOS/energy controls/amusement and gambling machines/white goods and medical machines
