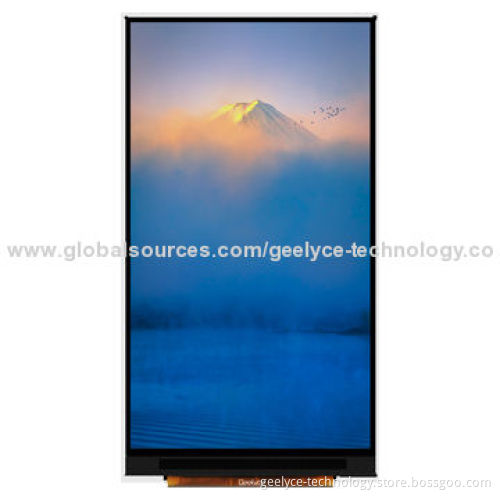

4.5-inch Mobile Phone LCD, 540 x RGB x 960-pixel Resolution, 18/24-bit InterfaceNew

4.5-inch Mobile Phone LCD, 540 x RGB x 960-pixel Resolution, 18/24-bit InterfaceNew

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Screen size: 4.5-inch (diagonal)
Drive IC: HX8369A
Resolution: 540 x RGB x 960P
Display modes: normally black and transmissive
Driver element: a-Si TFT active matrix
Color depth: 262,000K/16M
Viewing direction: all
Viewing angle: 80/80/80/80°
Brightness: 300cd/m^²
Operating temperature: -20 to 70°C
Storage temperature: -30 to 80°C
Color configuration RGB vertical stripe
Backlight unit: LED x 10 pieces
Interface: MCU 80-system 18/24-bit data bus 40-pin
Touch panel: without (touch panel mode for wire resistance and optional)
With the RoHS Directive-compliant
Dimensions:
- Outline: 59.54 x 109.30 x 1.9mm
- Active area: 55.44 x 98.64mm
- Pixel pitch: 0.0727 x 0.219mm
- Dots size: 0.0607 x 0.207mm

Applications:

Mobile phones and PDAs/consumer electronics/automotive/telecoms and data transfer/medical instruments/security managements/signs and displays/point of sales, EPOS/energy controls/amusement and gambling machines/white goods and medical machines.

Screen size: 4.5-inch (diagonal)

Drive IC: HX8369A

Resolution: 540 x RGB x 960P

Display modes: normally black and transmissive

Driver element: a-Si TFT active matrix

Color depth: 262,000K/16M

Viewing direction: all

Viewing angle: 80/80/80/80°

Brightness: 300cd/m^²

Operating temperature: -20 to 70°C

Storage temperature: -30 to 80°C

Color configuration RGB vertical stripe

Backlight unit: LED x 10 pieces

Interface: MCU 80-system 18/24-bit data bus 40-pin

Touch panel: without (touch panel mode for wire resistance and optional)

With the RoHS Directive-compliant

Dimensions:

Outline: 59.54 x 109.30 x 1.9mm
Active area: 55.44 x 98.64mm
Pixel pitch: 0.0727 x 0.219mm
Dots size: 0.0607 x 0.207mm

Outline: 59.54 x 109.30 x 1.9mm

Active area: 55.44 x 98.64mm

Pixel pitch: 0.0727 x 0.219mm

Dots size: 0.0607 x 0.207mm

Mobile phones and PDAs/consumer electronics/automotive/telecoms and data transfer/medical instruments/security managements/signs and displays/point of sales, EPOS/energy controls/amusement and gambling machines/white goods and medical machines.
