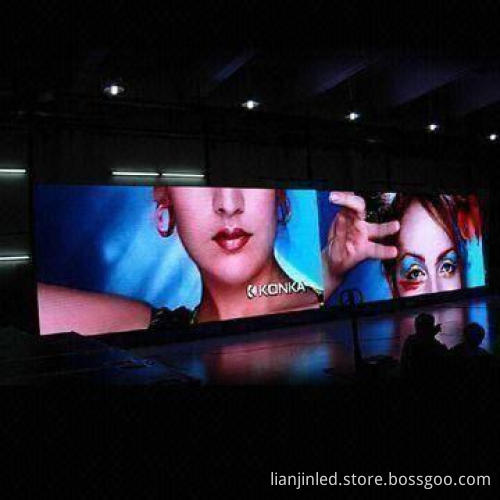

P5 LED Display/Screen/Sign with SMD 3-in-1, 180Hz Refresh Rate and 60 to 85Hz Frame Frequency

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Pixel pitch: 5mm
SMD 3-in-1
Module resolution (L x H): 32 x 32 = 1,024 pixel dots
Brightness of white: 2,800CD/sq.m at least
The optimal viewing distance: 2 to 20m
Grey scale: 10-bit/1,024-level
Display color: 1,024 x 1,024 x 1,024 = 1 billion
Viewing angle (H/V): 150/120 degrees
Refresh rate: 180Hz at least
Driving mode: constant driving 1/8 scan
Brightness adjustment: 0 to 100% with 8 levels automatic
Gamma correction: -5.0 to 5.0
Correction scale level: 16bits
Frame frequency: 60 to 85Hz
Cool color temperature: 5,000 to 9,300K (control by the software)
Input source supported: S-video/VGA/DVI/SDI/HD-SDI
Lifetime: at least 100,000 hours
MTBF: 5,000 hours at least
Out of control rate: 3/10,000

All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.

Pixel pitch: 5mm

SMD 3-in-1

Module resolution (L x H): 32 x 32 = 1,024 pixel dots

Brightness of white: 2,800CD/sq.m at least

The optimal viewing distance: 2 to 20m

Grey scale: 10-bit/1,024-level

Display color: 1,024 x 1,024 x 1,024 = 1 billion

Viewing angle (H/V): 150/120 degrees

Refresh rate: 180Hz at least

Driving mode: constant driving 1/8 scan

Brightness adjustment: 0 to 100% with 8 levels automatic

Gamma correction: -5.0 to 5.0

Correction scale level: 16bits

Frame frequency: 60 to 85Hz

Cool color temperature: 5,000 to 9,300K (control by the software)

Input source supported: S-video/VGA/DVI/SDI/HD-SDI

Lifetime: at least 100,000 hours

MTBF: 5,000 hours at least

Out of control rate: 3/10,000
