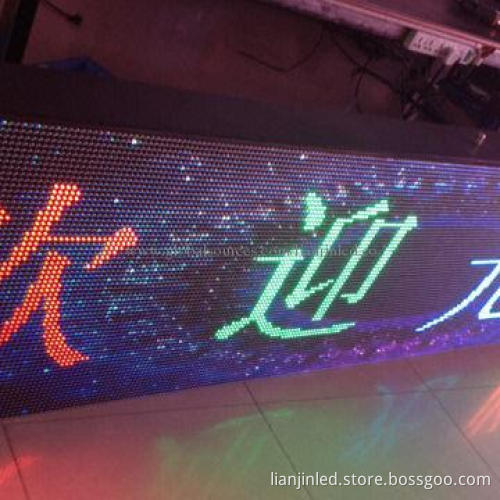

Outdoor LED Display Screen with 10mm Pitch, DIP 1R1G1B and 10 to 100m Viewing Distances

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Pixels:

Cabinet:

Main technical parameters:

Pitch: 10mm

Resolution: 16 x 16P

Module dimensions: 160 x 160mm

Pixel configuration: 1R1G1B

Density: 10,000 dots/m²

Cabinet dimensions: 960 x 96mm

Cabinet resolution: 96 x 96 dots

Module quality: 6 x 6 pieces

LED standard: DIP346

Best viewing distances: 10 to 100m

Best viewing angles: 120° (horizontal) and 55° (vertical)

Brightness: ≥6,500cd/m²

Drive mode: constant driving, 1/4 scan

Exchange frame frequency: ≥60Hz

Refresh rate: 350Hz

Gray grade: 16,384 levels

Protection rate: IP65

Control mode: synchronization

Working voltage: 380V ±10%

Maximum power consumption: 800W/m²

Working environment temperatures: -20 to 50°C

Screen lifespan: ≥100,000 hours

Blind dot rate: below 0.0001 computer

Operating systems: Microsoft's Windows 98, XP, 2000 and more

Video signal: RF, S-Video, RGB, RGBHV, YUV and more

Control system: DVI graphics card + sending card + receiving card

Software: LED studio

With CE, RoHS & FCC marks
