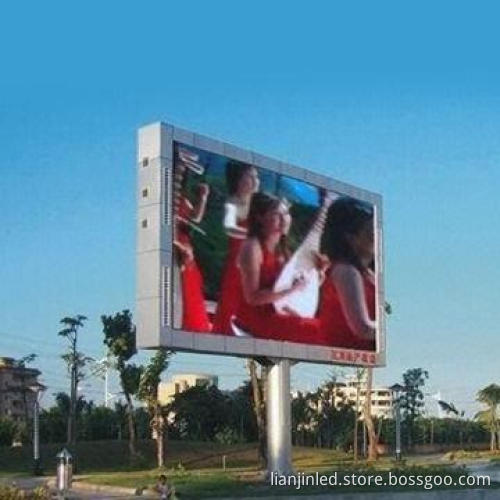

Outdoor LED Display with 10mm Pixel Pitch and 1R1PG1B Pixel Composition

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Pixel pitch: 10mm

Brightness: ≥7,000cd/m²

Pixel composition: 1R1PG1B

LED specifications: DIP346/3mm (diameter/oval)

Pixel resolution: 10,000 pixel dots/m²

Best viewing distance: 10 to 150m

Viewing angle:

Module dimensions: 160 x 160mm

Module resolution: 16 x 16 pixel dots

Cabinet dimensions: 1,280 x 960mm

Cabinet resolution: 128 x 96 = 12,288 pixel dots

Working temperature: -20 to 60 degrees Celsius

Heat treatment with fans inside

IP protection IP65 (weatherproof)

Driving IC 5026

Driving mode constant current

Scanning way 1/4

Brightness adjustment automatic and manual (by software)

Lifespan: ≥100,000 hours

MTBF: ≥5,000 hours

Power consumption: 800W/m² (maximum)

Average: 300W/m²

Displaying colors: 1,024 x 1,024 x 1,024 pixels

Signal interface: DVI

Control system: synchronous control system

Data communication: optical fiber

Available signals: RF, S-Video, RGB, RGBHV, HDTV, DVD, camera, DVI and more

Horizontal: 110°

Vertical: 50°
