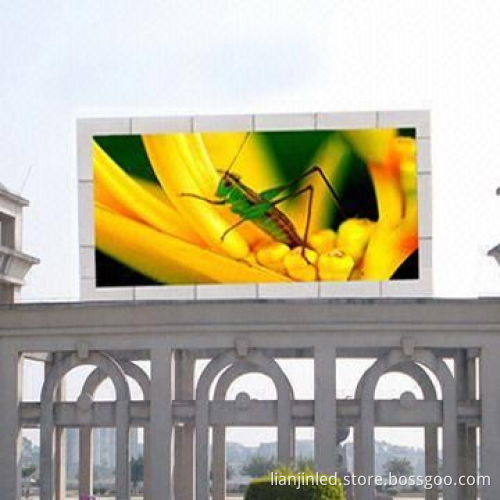

LED Display with Microsoft Windows Series System Software and More than 400Hz Frequency Range

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Pixel pitch: 16mm

Pixel density: 3,906 dots/m²

White balance brightness: 9,000cd/m²

Color temperature: 5,000 to 9,300K (chosen by user in thesoftware)

Brightness adjustment: 100 grades by software

Viewing angle:

Horizontal: 110Ú
Vertical: 50Ú

Best viewing distance: 15 to 300m

Computer wire: 100m

Optical fiber: 5,000m

Scanning method: static

Driving method: constant current

Driving IC: MBI5026 or Toshiba 5026

Gray grades: 1,024 levels for each color

Display color: 1,024 x 1,024 x 1,024 pixels

Refresh frequency: more than 400Hz

Picture display method: dots-to-dots display synchronized withCRT

Signal interface: DVI, VGA (can be customized)

Input signal: video: PAL/NTSC

Option: VGA, video, DVD, TV and others (the video processor canbe customized)

Display formats: 800 x 600, 1,024 x 768 and 1,280 x 1,024pixels

Software: Microsoft's Windows series system

Protection grade: IP65

Working temperature: -20 to 50 degrees Celsius

Humidity: 10 to 95% RH

Storage temperature: -50 to 70 degrees Celsius

Screen lifetime: e100,000 hours

Out of controlled dots: d3/10,000, out of controlled dots meansthe pixels of which the brightness and wave length are both 10%depart to the normal one

Whole display flatness: less than 1mm juncture

Maintenance way: back maintenance or front maintenance, moduledisplaced

Switch power supply: 110V/60Hz, 220V/50Hz

Power consumption:

Maximum: 1,300W

Average: 400 to 800W

Horizontal: 110Ú

Vertical: 50Ú

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
