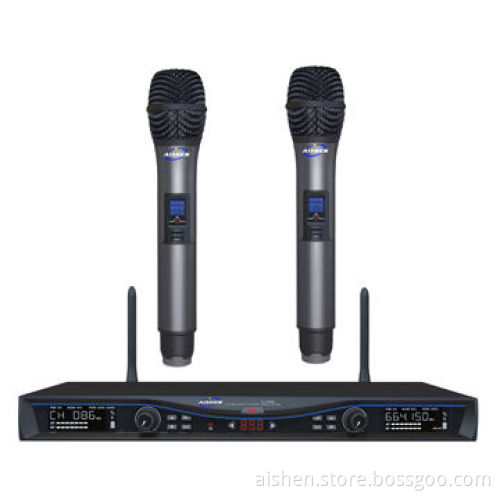

PLL/UHF Wireless Microphone System with Frequency Response of 50Hz to 18kHz
  • PLL/UHF Wireless Microphone System with Frequency Response of 50Hz to 18kHz
  • PLL/UHF Wireless Microphone System with Frequency Response of 50Hz to 18kHz
PLL/UHF Wireless Microphone System with Frequency Response of 50Hz to 18kHz
PLL/UHF Wireless Microphone System with Frequency Response of 50Hz to 18kHz

PLL/UHF Wireless Microphone System with Frequency Response of 50Hz to 18kHz

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Professional UHF PLL diversity wireless microphone system
    • Suitable for huge stage singing
    • Board frequency response and sensitivity range
  • IU-2066 receiver:
    • Carrier wave frequency range: UHF 600 to 870MHz
    • Oscillation mode: phase-locked loop controlled
    • Receive mode: true diversity receive
    • Switching bandwidth: 24MHz
    • Sensitivity: -105dB at sinad=12dB
    • S/N ratio: >105dB
    • THD: <0.5% at 1kHz
    • Frequency responses: 50Hz to 18KHz, ±1dB
    • Dimensions: 220x45x152mm
  • IB-09 transmitter (body pack):
    • Transmitter power: 30mW
    • Spurious emission: <40dB
    • Display: LCD
    • Battery voltage: 1.5V x 2
    • Battery lifespan: 8 hours
    • 4-class adjustable sensitivity
  • IA-14 transmitter (handheld):
    • Transmitter power: 30mW
    • Spurious emission: <40dB
    • Display: LCD
    • Battery: AA x 2
    • Current drain: <130mA
    • 4-class adjustable sensitivity
  • Professional UHF PLL diversity wireless microphone system
  • Suitable for huge stage singing
  • Board frequency response and sensitivity range
  • Carrier wave frequency range: UHF 600 to 870MHz
  • Oscillation mode: phase-locked loop controlled
  • Receive mode: true diversity receive
  • Switching bandwidth: 24MHz
  • Sensitivity: -105dB at sinad=12dB
  • S/N ratio: >105dB
  • THD: <0.5% at 1kHz
  • Frequency responses: 50Hz to 18KHz, ±1dB
  • Dimensions: 220x45x152mm
  • Transmitter power: 30mW
  • Spurious emission: <40dB
  • Display: LCD
  • Battery voltage: 1.5V x 2
  • Battery lifespan: 8 hours
  • 4-class adjustable sensitivity
  • Transmitter power: 30mW
  • Spurious emission: <40dB
  • Display: LCD
  • Battery: AA x 2
  • Current drain: <130mA
  • 4-class adjustable sensitivity
