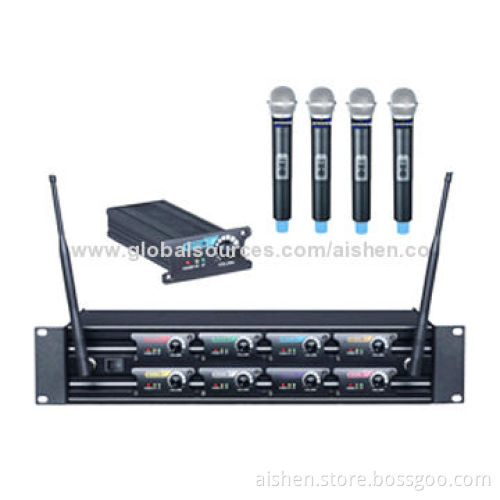

8-channel Wireless Microphone, 8 Replaceable Receiver/Transmitter Modules

8-channel Wireless Microphone, 8 Replaceable Receiver/Transmitter Modules

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

8 replaceable receiver/transmitter modules

8 microphone output with individual volume controls

UHF band quartz lock for drift-free operation

Receiver power/RF/AF/microphone low battery indicators

Front antenna provides clear RF reception

8 individual XLR mic output and 11/4-inch mixed output

AIU-8001 receiver:

Carrier wave frequency range: UHF 600 to 800MHz
Oscillation mode: quartz controlled fixed frequency
Carrier wave stability: 10PPM
Sensitivity: -105dB at sinad=12dB
S/N ration: >105dB
THD: <0.5%, 1kHz
Image rejection: 85dB typical
Spurious rejection: 75dB typical
Frequency response: 40Hz to 18KHz
Working distance: 200 feet
Squelch control: dual-squelch circuit, AF output impedance of2.2K©
Maximum output level:
- Balance: 0 to 400mV
- Unbalance: 0 to 200mV
Display: LED
Power supply: external DC power supply, 0.8A, 12 to 18V DC
Output connector: 4 XLR balanced socket, unbalance TRs, 6.35mmsocket
Dimensions: 420*90*220mm

IB-07 transmitter (body pack):

Transmitter power: 30mW
Spurious emission: <40dB
Display: LED
Battery voltage: 1.5V x 2
Battery lifespan: 8 hours

IA-06 transmitter (handheld):

Transmitter power: 30mW
Spurious emission: <40dB
Display: LED
Battery voltage: 1.5V x 2
Battery lifespan: 8 hours

Carrier wave frequency range: UHF 600 to 800MHz

Oscillation mode: quartz controlled fixed frequency

Carrier wave stability: 10PPM

Sensitivity: -105dB at sinad=12dB

S/N ration: >105dB

THD: <0.5%, 1kHz

Image rejection: 85dB typical

Spurious rejection: 75dB typical

Frequency response: 40Hz to 18KHz

Working distance: 200 feet

Squelch control: dual-squelch circuit, AF output impedance of2.2K©

Maximum output level:

Balance: 0 to 400mV
Unbalance: 0 to 200mV

Display: LED

Power supply: external DC power supply, 0.8A, 12 to 18V DC

Output connector: 4 XLR balanced socket, unbalance TRs, 6.35mmsocket

Dimensions: 420*90*220mm

Balance: 0 to 400mV

Unbalance: 0 to 200mV

Transmitter power: 30mW

Spurious emission: <40dB

Display: LED

Battery voltage: 1.5V x 2

Battery lifespan: 8 hours

Transmitter power: 30mW

Spurious emission: <40dB

Display: LED

Battery voltage: 1.5V x 2

Battery lifespan: 8 hours
