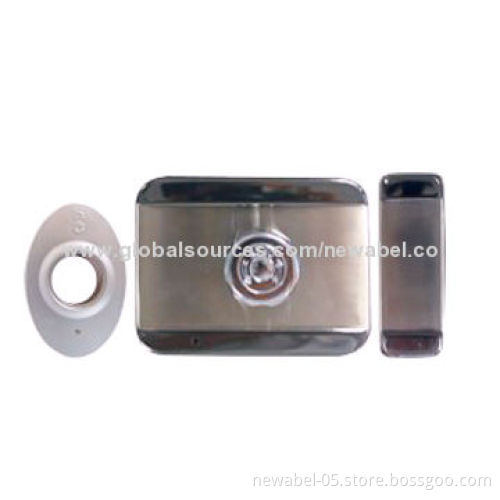

Electromagnetic Lock, Waterproof Card Reading Loop and Anti-explode, Automatically Locks

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C

Product Description

Features:

Standard 12-18V DC power supply and maximal working current is 300mA
With Wigand 26-bit interface with voice and indicating work state
Once wrongly locked or wrongly unlocked, it will auto unlock or lock in 410 seconds
Connected with door access controller so that remote controller can control it to open or close door
With EM or Mifare 1 card reader inside , so supports remote controller and ID/IC card to open doors

Performance parameters:

Size (W x H):130 x 105mm
Direct current 12 ±10%V for power supply
The current in waiting is less than 110mA, while the current for reading cards is less than 400mA
Current-restrictive protect (automatic restart fuse), optical coupler isolation and TVS protection
Working frequency: 125kHz
Distance of reading card: 50-100mm (the distance is relational with type of door)
Speed of reading card is less than 0.1 second
Standard Wigand output port and OC output port
Distance of Wigand communication is more than 60m
Once wrongly locked or wrongly unlocked, it will auto unlock or lock in 4-10 seconds
Working environments: -10-55℃, relative humidity range 5 -95% RH, full dampness-proof
With sound and indicating light indicating working state

Standard 12-18V DC power supply and maximal working current is 300mA

With Wigand 26-bit interface with voice and indicating work state

Once wrongly locked or wrongly unlocked, it will auto unlock or lock in 410 seconds

Connected with door access controller so that remote controller can control it to open or close door

With EM or Mifare 1 card reader inside , so supports remote controller and ID/IC card to open doors

Size (W x H):130 x 105mm

Direct current 12 ±10%V for power supply

The current in waiting is less than 110mA, while the current for reading cards is less than 400mA

Current-restrictive protect (automatic restart fuse), optical coupler isolation and TVS protection

Working frequency: 125kHz

Distance of reading card: 50-100mm (the distance is relational with type of door)

Speed of reading card is less than 0.1 second

Standard Wigand output port and OC output port

Distance of Wigand communication is more than 60m

Once wrongly locked or wrongly unlocked, it will auto unlock or lock in 4-10 seconds

Working environments: -10-55℃, relative humidity range 5 -95% RH, full dampness-proof

With sound and indicating light indicating working state
