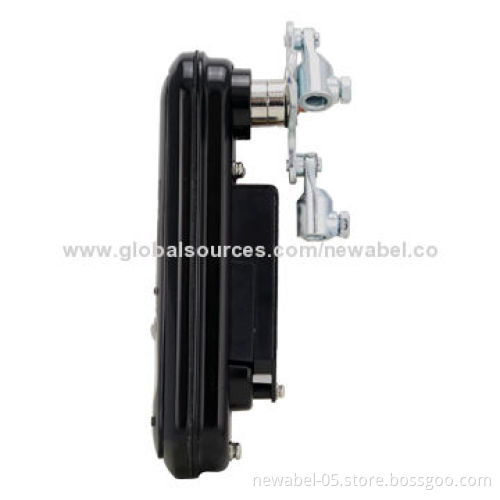

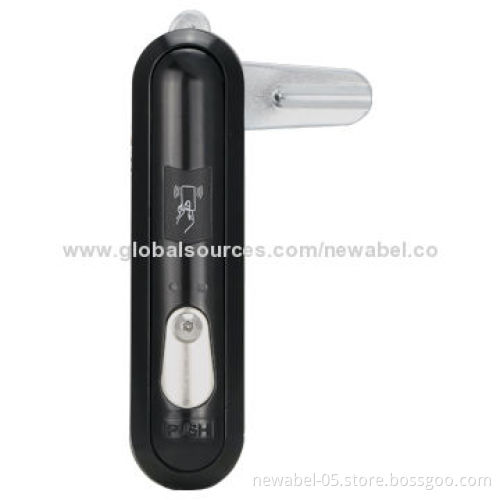

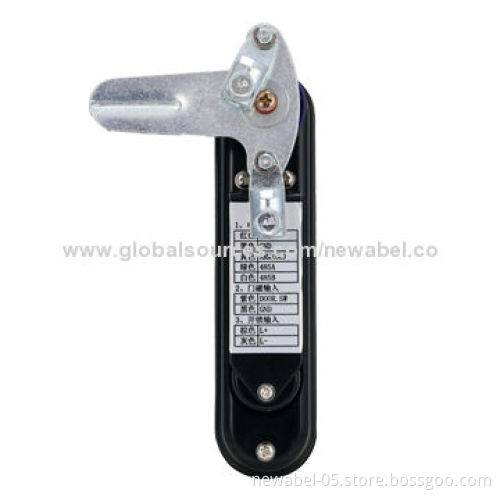

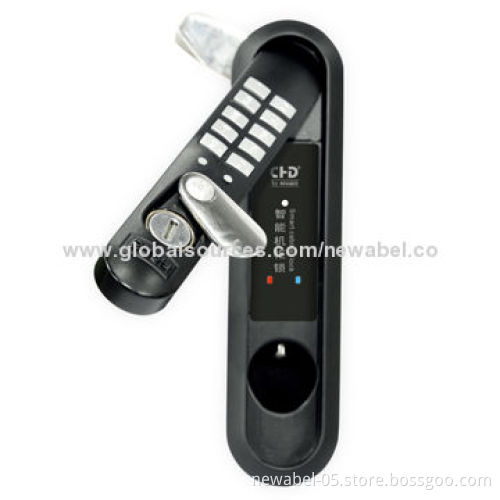

Intelligent Cabinet Lock with New Design, 12V DC Working Voltage

Intelligent Cabinet Lock with New Design, 12V DC Working Voltage

Get Latest Price

Payment Type:: Cash in Advance (CID

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash in Advance (CID

Product Description

The intelligent cabinet lock is our new development advanced and innovative products based on access control lock and card reader lock used for the base station

With the traditional advantage of the mechanical cabinet lock, it integrates with cabinet lock, card reader, access controller and more

Flexible to select the bolted steel with upper and lower bolts connection, available to replace the existing mechanical cabinet lock, easy to install, strong functions, good stability

Uses RS485 or RS422 to make the network, working together with different management platform, makes the users accepts and give good feedback for this system

Working voltage: 12V DC

Input voltage range: 10.8-13.2V DC

Working current: 30-60mA (without swiping card)

Less than 1A when swipe card

Card support: EM card, Mifare 1

Working frequency: ID card 125kHz, IC card 13.56MHz

Reading distance: ID card: 40-60mm, IC card: 20-40mm
