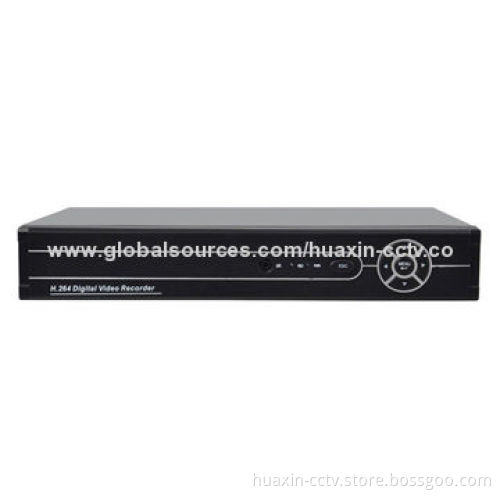

Standalone DVRs 4-channel DVR with HDMI/VGA, 12V/2A Power Supply

Standalone DVRs 4-channel DVR with HDMI/VGA, 12V/2A Power Supply

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

System:

Main processor: technical grade embedded microprocessor HI 3515C
Operating system: embedded Linux
System resource: multichannel real-time recording synchronously, multichannel real-time playback, multichannel, multi-user network operating, USB backup

Interface:

Operating interface: 16-bit real color GUI interface support mouse operating
Display screen: 1/4-inch (take analog channel as an example, other is based on the selected channel mode)

Video:

Video standard: PAL (625TV lines, 50fps), NTSC (525TV lines, 60fps)
Image encode H.264 (high-profile)
Monitor quality:
- Monitor: D1, VGA, HDMI
- High-definition: (support 1,280 x 720, 1,440 x 900, 1,280 x 1,024, 1,024 x 768, 800 x 600P)
Playback quality: D1/HD1/CIF
Encode capability: 4CH D1 real-time
Decode capability: 2CH D1 real-time, 2CH D1 no real-time
Motion detection: each channel can set 192 (16 x 12) detection areas, can set multilevel of flexibility (for local analog channel only)

Audio:

Audio compression: G711A
Bidirectional talk: supported

Record and playback:

Record mode: manual, alarm, motion detection, timing
Local playback: 1-4-channel playback synchronously
Video search: time, date, event, channel search

Storage and backup:

Space occupation:
- Video: CIF 4-5G/day x channel, D1 16-20G/day x channel
- Audio: 691.2M/day x channel
Video storage: local HDD, network
Backup mode: network backup, USB portable HDD, USB imprint, SATA imprint

Interface:

Video input: 4-channel CVBS/BNC (1.0Vp-p, 75Ω)
Video output: 1 channel CVBS/BNC (1.0Vp-p, 75Ω), 1 channel VGA, 1 channel HDMI
Audio input: 1 channel RCA (200-2,800mV, 30kΩ)
Audio input: 1 channel RCA (200-3,000mV, 5kΩ)
Network port: RJ45 10/100M self-adaptive Ethernet port
USB ports: 2 x USB2.0
HDD port: 1 SATA port (each maximum to 4TB)

Other:

Power supply: 12V/2A
Consumption: <15W (not including HDD)
Temperature: 0-+55°C
Humidity: 10-90% RH
Atmosphere pressure: 86-106kPa
Dimensions (L x W x H): 220*250*40mm
Weight: 0.6kg
