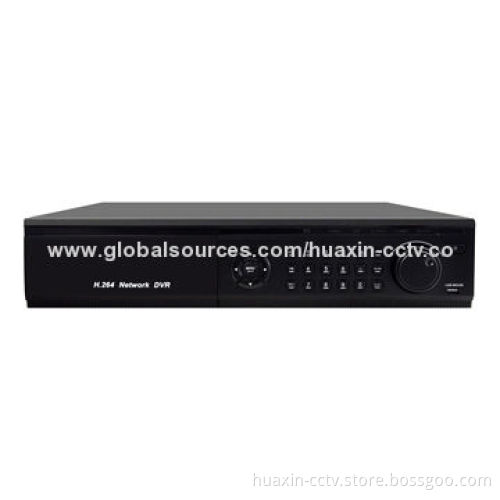

Standalone DVR, Encode Capacity 32CH CIF Real-time, Decode Capacity 16CH CIF Real-time

Standalone DVR, Encode Capacity 32CH CIF Real-time, Decode Capacity 16CH CIF Real-time

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications

Model: J-9332H(HI3521)
System:
Main processor: Industrial embedded micro controller Huawei Hass platform
Operating system: Embedded Linux
System resources: smultaneous multi-channel real-time recording, playback, network operating, USB backup
Interface:
- User interface supports 16-bit true color graphical menu interface and mouse operating
- Preview screen: 1/4/8/9/16/24/32 (under analog mode)
- Video: 1
- Video standards: PAL (625-line, 50f/s), NTSC (525-line, 60f/s)
- Video compression: H.264 (high-profile)
Display quality:
- Monitor: D1, VGA
- HDMI: HD (maximum 19,20*1,080P)
- Play quality: D1/HD1/CIF/QCIF
- Encode capacity: 32CH CIF real-time
- Decode capacity: 16CH CIF real-time
- Hybrid mode: only Analog (DVR) 32*CIF only IP(NVR) 16*D1/2 x 1,080P + 2*720P
- /1 x 1,080P + 1 x 720P + 6 x 960H/8 x 720P
- Motion detect: zones: 192 (16 x 12) detection zones
- Sensitivity: multi-level sensitivity (only local channels)
Audio:
- Audio compression: G.711A
- Bidirectional talk: supported
Record and playback:
- Record mode: manual, alarm, motion detection, timing
- Local playback: 1-16CH playback, under analog mode 32 x CIF, up to 16CH playback (16 x CIF at 25fps)
- Search mode: time/calendar/event/channel search
Storage and backup:
- Space occupation
- Video:
  - CIF: 4-5G/day x channel
  - D1: 8 - 10G/day x channel
  - 960H: 12-20G/day x channel
  - 720P: 20-30G/day x channel
  - 1,080P: 40G/day x channel
- Audio: 691.2M/day x channel
- Record storage: HDD and network
- Backup mode: network backup, USB HDD, USB writer, SATA writer
Interface:
- Video input: 32CH BNC (1.0Vp-p, 75Ω)
- Video output: 2CH BNC (1.0Vp-p, 75Ω), 1ch VGA，1ch HDMI
- Audio input: 4CH RCA (200-2,800mV, 30kΩ)
- Audio output: 1CH RCA (200-3,000mV, 5kΩ)
- Alarm input: 8CH
- Alarm output: 1CH
- Net interface: RJ45 10M/100M
- PTZ control: one RS485, one RS232

Model: J-9332H(HI3521)

System:

Main processor: Industrial embedded micro controller Huawei Hass platform

Operating system: Embedded Linux

System resources: smultaneous multi-channel real-time recording, playback, network operating, USB backup

Interface:

User interface supports 16-bit true color graphical menu interface and mouse operating
Preview screen: 1/4/8/9/16/24/32 (under analog mode)
Video: 1
Video standards: PAL (625-line, 50f/s), NTSC (525-line, 60f/s)
Video compression: H.264 (high-profile)

Display quality:

Monitor: D1, VGA
HDMI: HD (maximum 19,20*1,080P)
Play quality: D1/HD1/CIF/QCIF
Encode capacity: 32CH CIF real-time
Decode capacity: 16CH CIF real-time
Hybrid mode: only Analog (DVR) 32*CIF only IP(NVR) 16*D1/2 x 1,080P + 2*720P
/1 x 1,080P + 1 x 720P + 6 x 960H/8 x 720P
Motion detect: zones: 192 (16 x 12) detection zones
Sensitivity: multi-level sensitivity (only local channels)

Audio:

Audio compression: G.711A
Bidirectional talk: supported

Record and playback:

Record mode: manual, alarm, motion detection, timing
Local playback: 1-16CH playback, under analog mode 32 x CIF, up to 16CH playback (16 x CIF at 25fps)
Search mode: time/calendar/event/channel search

Storage and backup:

Space occupation
Video:
- CIF: 4-5G/day x channel
- D1: 8 - 10G/day x channel
- 960H: 12-20G/day x channel
- 720P: 20-30G/day x channel
- 1,080P: 40G/day x channel
Audio: 691.2M/day x channel
Record storage: HDD and network
Backup mode: network backup, USB HDD, USB writer, SATA writer

Interface:

Video input: 32CH BNC (1.0Vp-p, 75Ω)
Video output: 2CH BNC (1.0Vp-p, 75Ω), 1ch VGA，1ch HDMI
Audio input: 4CH RCA (200-2,800mV, 30kΩ)
Audio output: 1CH RCA (200-3,000mV, 5kΩ)
Alarm input: 8CH
Alarm output: 1CH
Net interface: RJ45 10M/100M
PTZ control: one RS485, one RS232

User interface supports 16-bit true color graphical menu interface and mouse operating

Preview screen: 1/4/8/9/16/24/32 (under analog mode)

Video: 1

Video standards: PAL (625-line, 50f/s), NTSC (525-line, 60f/s)

Video compression: H.264 (high-profile)

Monitor: D1, VGA

HDMI: HD (maximum 19,20*1,080P)

Play quality: D1/HD1/CIF/QCIF

Encode capacity: 32CH CIF real-time

Decode capacity: 16CH CIF real-time

Hybrid mode: only Analog (DVR) 32*CIF only IP(NVR) 16*D1/2 x 1,080P + 2*720P

/1 x 1,080P + 1 x 720P + 6 x 960H/8 x 720P

Motion detect: zones: 192 (16 x 12) detection zones

Sensitivity: multi-level sensitivity (only local channels)

Audio compression: G.711A

Bidirectional talk: supported

Record mode: manual, alarm, motion detection, timing

Local playback: 1-16CH playback, under analog mode 32 x CIF, up to 16CH playback (16 x CIF at 25fps)

Search mode: time/calendar/event/channel search

Space occupation

Video:

CIF: 4-5G/day x channel
D1: 8 - 10G/day x channel
960H: 12-20G/day x channel
720P: 20-30G/day x channel
1,080P: 40G/day x channel

Audio: 691.2M/day x channel

Record storage: HDD and network

Backup mode: network backup, USB HDD, USB writer, SATA writer

CIF: 4-5G/day x channel

D1: 8 - 10G/day x channel

960H: 12-20G/day x channel

720P: 20-30G/day x channel

1,080P: 40G/day x channel

Video input: 32CH BNC (1.0Vp-p, 75Ω)

Video output: 2CH BNC (1.0Vp-p, 75Ω), 1ch VGA，1ch HDMI

Audio input: 4CH RCA (200-2,800mV, 30kΩ)

Audio output: 1CH RCA (200-3,000mV, 5kΩ)

Alarm input: 8CH

Alarm output: 1CH

Net interface: RJ45 10M/100M

PTZ control: one RS485, one RS232
