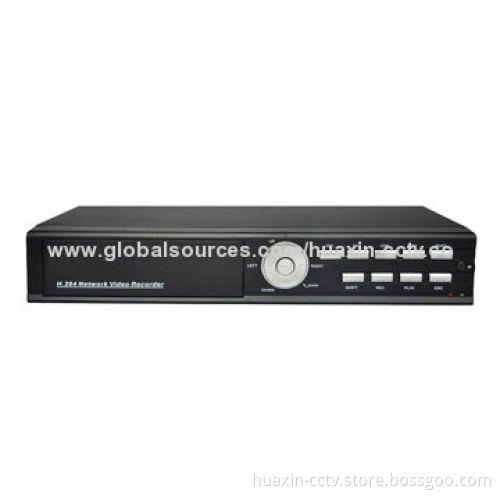

Standalone DVR With 8CH Video, 8CH Audio, Real-time Recording Synchronously

Standalone DVR With 8CH Video, 8CH Audio, Real-time Recording Synchronously

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features：

Compression algorithm ideal: Compression algorithm upgraded to H.264 main profileØ
Playback quality: real-time recording synchronously （2 D1+6CIF real-time encode, real-time multi-channel playback synchronously
Mobile monitor: Support all kinds of mobile monitor （iPhone, Windows mobile, BlackBerry, Symbian, Android）
Display: Supports TV, VGA & HDMI output synchronously
Differentiation: change boot screen freely, support more than 20 kinds of languages, more than 10 kinds of GUI interface, ten kinds of remote controller Ø

Specifications：

Model ：J-8108AV/HAV
Main processor technical grade embedded microprocessor HI 3520D
Operating system embedded LINUX operating system
Video standard PAL（625 lines, 50fps）；NTSC（525lines，60fps）
Image encode H.264(High Profile)
Monitor quality monitor: D1, VGA
HDMI: High definition （supports 1,280*720, 1,440*900, 1,280*1,024, 1,024*768, 800*600）
Playback quality: D1/HD1/CIF
Encode capability: 2 D1+6CIF real-time
Decode capability: 2 D1+6CIF real-time
Motion detection each channel can set 192（16*12） detection area, can set multi-level of flexibility (for local analog channel only)

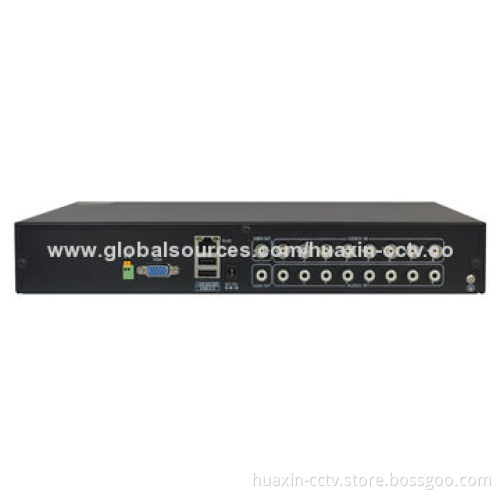

Video input: 8ch CVBS/BNC(1.0Vp-p,75Ω)
Video output: 1ch CVBS/BNC(1.0Vp-p,75Ω)，1ch VGA，1ch HDMI
Audio input: 8ch RCA(200-2800mV,30KΩ)
Audio input: 8ch RCA(200-3000mV,5KΩ)
Network port RJ45 10M/100M self-adaptive Ethernet port
PTZ control 1 RS485, supports multiple kind of PTZ protocol
Temperatures: 0 - 55℃
Humidity range: 10－90%
Atmosphere pressure: 86kpa－106kpa
Weight: 1.5KG

Compression algorithm ideal: Compression algorithm upgraded to H.264 main profileØ

Playback quality: real-time recording synchronously （2 D1+6CIF real-time encode, real-time multi-channel playback synchronously

Mobile monitor: Support all kinds of mobile monitor （iPhone, Windows mobile, BlackBerry, Symbian, Android）

Display: Supports TV, VGA & HDMI output synchronously

Differentiation: change boot screen freely, support more than 20 kinds of languages, more than 10 kinds of GUI interface, ten kinds of remote controller Ø

Model ：J-8108AV/HAV

Main processor technical grade embedded microprocessor HI 3520D

Operating system embedded LINUX operating system

Video standard PAL（625 lines, 50fps）；NTSC（525lines，60fps）

Image encode H.264(High Profile)

Monitor quality monitor: D1, VGA

HDMI: High definition （supports 1,280*720, 1,440*900, 1,280*1,024, 1,024*768, 800*600）

Playback quality: D1/HD1/CIF

Encode capability: 2 D1+6CIF real-time

Decode capability: 2 D1+6CIF real-time

Motion detection each channel can set 192（16*12） detection area, can set multi-level of flexibility (for local analog channel only)

Video input: 8ch CVBS/BNC(1.0Vp-p,75Ω)
