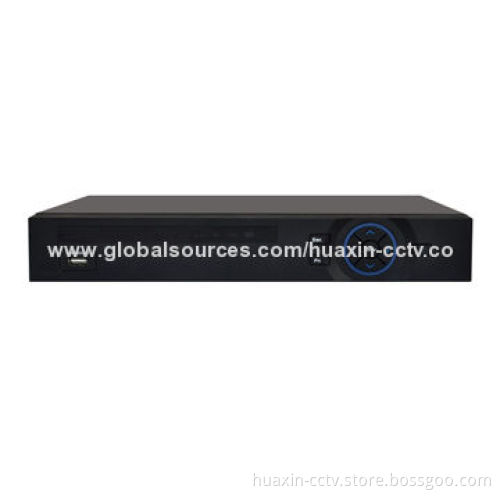

4CH 1,080P Network Video Recorder, 10-90% RH Humidity

4CH 1,080P Network Video Recorder, 10-90% RH Humidity

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Main processor: technical grade embedded microprocessor HI 3520D

Operating system: Embedded Linux operating system

System resource: multi-channel real-time recording synchronously, multi-channel real-time

Playback, multi-channel multi-user network operation, USB back up

Operating interface: 16-bit real color GUI interface support mouse operating

Display screen: 1/4-inch screen (take analog channel as an example, other is base on the selected channel mode)

Video standard: PAL (625 lines, 50fps), NTSC (525 lines, 60fps)

Image encode: H.264 (high-profile)

Monitor quality: VGA

HDMI: high-definition (support 1,920*1,080, 1,280*720, 1,440*900, 1,280*1,024, 1,024*768, 800*600P)

Playback quality: 1,080P

Encode capability: 4CH 1,080P real-time

Decode capability: 1*1,080P real-time

Motion detection each channel can set 192 (16*12) detection area, can set multi-level of flexibility (for local analog channel only)

Record and playback:

Record mode: manual>alarm>motion detection>timing
Local playback: 1CH playback
Video search: time, date, event, channel search

Storage and back up:

Space occupation: video: CIF 4-5G/day*channel, D1 16-20G/day*channel
Audio: 691.2M/day*channel
Video storage: local HDD, network
Back up mode: network backup, USB portable HDD, USB imprint, SATA imprint

Interface:

Video output: 1CH CVBS/BNC (1.0Vp-p,75Ω), 1CH VGA, 1CH HDMI
Audio output: 1CH
Network port: RJ45 10M/100M self-adaptive Ethernet port
USB port: 2*USB2.0
HDD port: 2 SATA ports (each max to 4TB）

Other

Power: 12V/4A
Consumption: <15W（not including HDD)
Temperature: 0＋55℃
Humidity: 10-90% RH
Atmosphere pressure: 86－106kpa
Dimensions (L x W x H): 300*223*45mm
Weight :1.5kg

Record mode: manual>alarm>motion detection>timing

Local playback: 1CH playback

Video search: time, date, event, channel search

Space occupation: video: CIF 4-5G/day*channel, D1 16-20G/day*channel

Audio: 691.2M/day*channel

Video storage: local HDD, network

Back up mode: network backup, USB portable HDD, USB imprint, SATA imprint

Video output: 1CH CVBS/BNC (1.0Vp-p,75Ω), 1CH VGA, 1CH HDMI

Audio output: 1CH

Network port: RJ45 10M/100M self-adaptive Ethernet port

USB port: 2*USB2.0

HDD port: 2 SATA ports (each max to 4TB）

Power: 12V/4A

Consumption: <15W（not including HDD)

Temperature: 0＋55℃

Humidity: 10-90% RH

Atmosphere pressure: 86－106kpa

Dimensions (L x W x H): 300*223*45mm

Weight :1.5kg
