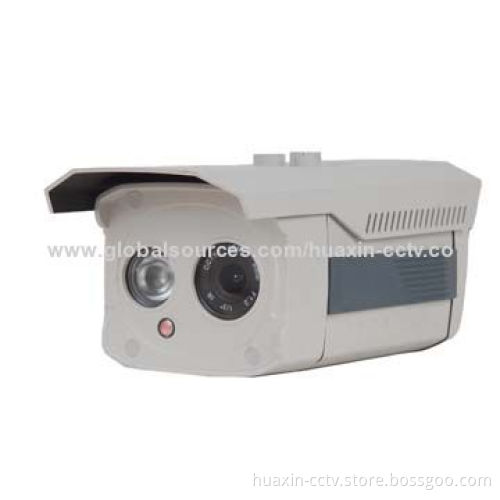

CCTV Box Camera with 20 to 50m Distance, 1/3-inch DIS Image Sensor
  • CCTV Box Camera with 20 to 50m Distance, 1/3-inch DIS Image Sensor
CCTV Box Camera with 20 to 50m Distance, 1/3-inch DIS Image Sensor

CCTV Box Camera with 20 to 50m Distance, 1/3-inch DIS Image Sensor

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  •  Features:
    • 1/3 DIS sensor, it shows the superior image effects
    • High-resolution, OSD BLD, AGC and AWB
  • Specifications:
    • Model: J-7382D
    • Image sensor: 1/3-inch DIS
    • CCD total pixels:
      • PAL: 1,280 x 1,024P
      • NTSC: 1,280 x 1,024P
    • Sync system: internal
    • Minimum illumination: 0.01 Lux F1.2/0 Lux (IR-on)
    • Resolution: 1,000TVL
    • Lens range: 4-16mm
    • IR LED: 1 piece
    • IR distance range: 20-50m
    • WBC: 3,200-9,600°K, auto
    • AGC: AGC-on/off
    • S/N ratio: ≥48dB
    • Exposure time: 1/50-1/100,000 seconds, auto
    • Auto-iris: electronic shutter speed
    • Mirror function: on/off
    • BLC: on/off
    • Video output: 1.0Vp-p, 1.0vp-p/75Ω
    • Gamma correction: 0.45
    • Working temperature/humidity: -10-50℃, <85% RH (no condensation)
    • Power supply: 12V DC ±1V/2,000mA
    • Power consumption range: 3-10W (IR-on)
  • 1/3 DIS sensor, it shows the superior image effects
  • High-resolution, OSD BLD, AGC and AWB
  • Model: J-7382D
  • Image sensor: 1/3-inch DIS
  • CCD total pixels:
    • PAL: 1,280 x 1,024P
    • NTSC: 1,280 x 1,024P
  • Sync system: internal
  • Minimum illumination: 0.01 Lux F1.2/0 Lux (IR-on)
  • Resolution: 1,000TVL
  • Lens range: 4-16mm
  • IR LED: 1 piece
  • IR distance range: 20-50m
  • WBC: 3,200-9,600°K, auto
  • AGC: AGC-on/off
  • S/N ratio: ≥48dB
  • Exposure time: 1/50-1/100,000 seconds, auto
  • Auto-iris: electronic shutter speed
  • Mirror function: on/off
  • BLC: on/off
  • Video output: 1.0Vp-p, 1.0vp-p/75Ω
  • Gamma correction: 0.45
  • Working temperature/humidity: -10-50℃, <85% RH (no condensation)
  • Power supply: 12V DC ±1V/2,000mA
  • Power consumption range: 3-10W (IR-on)
  • PAL: 1,280 x 1,024P
  • NTSC: 1,280 x 1,024P
