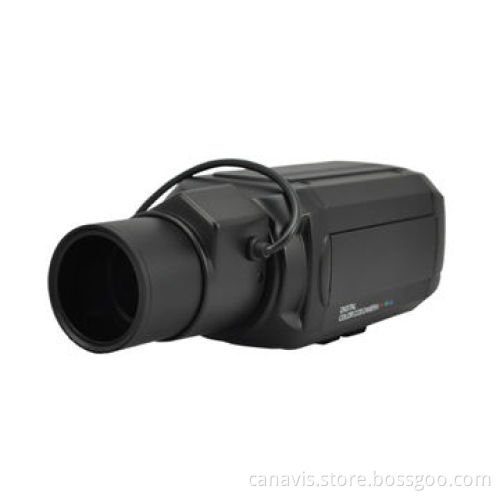

WDR Camera, 700TVL Horizontal Resolution, Auto Dynamic Noise Reduction

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Minimum illumination of 1.0 Lux/F2.0 (AGC maximum), 0.001 Lux (DSS) digital day/night

Powerful WDR (wide dynamic range) performance

Privacy image masking 4 areas

5 motion detection

Auto dynamic noise reduction

Colors/(black and white), double IR filters

Multiple language OSD

Image sensor: 1/3-inch Sony CCD II

Signal system: PAL/NTSC

Horizontal resolution: 650, 700TVL

Whole pixels:

PAL (H x V): 795 x 596 pixels
NTSC (H x V): 811 x 508 pixels

Effective pixels:

PAL (H x V): 752 x 582 pixels/440K
NTSC (H x V): 768 x 494 pixels/380K

Shutter speed: x128 to 1/50 to 1/120,000 seconds

S/N ratio: >50dB (AGC off)

Lens mount: C/CS, back focus control lever

Scanning frequency (horizontal): 15.625kHz

Scanning frequency (vertical): 50Hz

Scanning system: 2:1 interlace

Minimum illumination: 0.3 (color), 0.1 (black and white), 0.0003 Lux (frame integration on）

Synchronization: internal

Video output: 1.0Vp-p composite (75Ω)

Color/(black and white): double IR filters (AGC mode)

Dynamic noise reduction: auto

White balance: auto

Backlight compensation: WDR/back-light compensation/off

OSD menu: OSD menu setting/setting through RS485 remote controlling

Flicker-less: on/off

Frame integration: maximum 128 FLD on/off

Mirror Image: on/off

SLC (strong light control): on/off

Privacy: 4

Motion detection: 5

Auto-gain: on/off

Working temperatures: -10 to 50ºC

Storage temperaturse: -20 to 60ºC

Power supply: 12V DC (10 to 15V)

Power consumption: 3W (maximum)

Working humidity range: 80 to 90% RH (maximum)

Dimensions: 115 x 70 x 62mm

Weight: 350g

Optional colors: black/silver and grey

PAL (H x V): 795 x 596 pixels

NTSC (H x V): 811 x 508 pixels

PAL (H x V): 752 x 582 pixels/440K

NTSC (H x V): 768 x 494 pixels/380K
