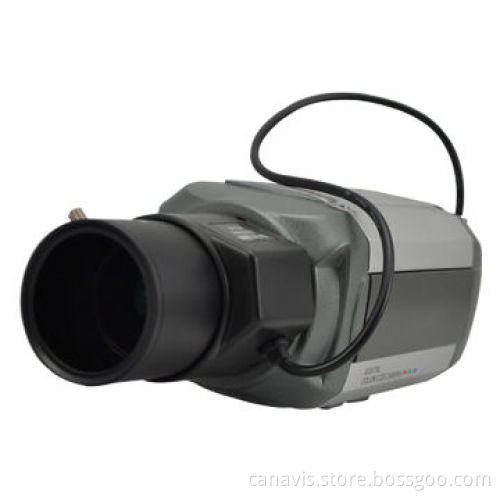

WDR Camera with 650, 700TVL Horizontal Resolution, 5 Motion Detection
  • WDR Camera with 650, 700TVL Horizontal Resolution, 5 Motion Detection
WDR Camera with 650, 700TVL Horizontal Resolution, 5 Motion Detection

WDR Camera with 650, 700TVL Horizontal Resolution, 5 Motion Detection

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Minimum illumination of 1.0 Lux/F2.0 (AGC maximum), 0.001 Lux(DSS) digital day/night
    • Powerful WDR (wide dynamic range) performance
    • Privacy image masking 4 areas
    • 5 motion detection
    • Auto dynamic noise reduction
    • Colors/(black and white), double IR filters
    • Multiple language OSD
    • Image sensor: 1/3-inch Sony CCD II
    • Signal system: PAL/NTSC
    • Horizontal resolution: 650, 700TVL
    • Whole pixels:
      • PAL (H x V): 795 x 596 pixels
      • NTSC (H x V): 811 x 508 pixels
    • Effective pixels:
    • PAL (H x V): 752 x 582 pixels/440K
    • NTSC (H x V): 768 x 494 pixels/380K
  • Shutter speed: 128 to 1/50 to 1/120,000 seconds
  • S/N ratio: >50dB (AGC off)
  • Lens mount: C/CS, back focus control lever
  • Scanning frequency (horizontal): 15.625kHz
  • Scanning frequency (vertical): 50Hz
  • Scanning system: 2:1 interlace
  • Minimum illumination: 0.3 Lux (color), 0.1 Lux (black and white), 0.0003 Lux (frame integration on
  • Synchronization: internal
  • Video output: 1.0Vp-p composite (75©)
  • Color/(black and white): double IR filters (AGC mode)
  • Dynamic noise reduction: auto
  • White balance: auto
  • Backlight compensation: WDR/backlight compensation/off
  • OSD menu: OSD menu setting/setting through RS485 remote controlling
  • Flicker-less: on/off
  • Frame integration: maximum 128 FLD on/off
  • Mirror image: on/off
  • SLC: on/off
  • Privacy: 4
  • Motion detection: 5
  • Auto-gain: on/off
  • Working temperature: -10 to 50ºC
  • Storage temperature: -20 to 60ºC
  • Power supply: 12V DC (10 to 15V)
  • Power consumption: maximum 3W
  • Working humidity range: maximum 80 to 90% RH
  • Dimensions: 115 x 70 x 62mm
  • Weight: 350g
  • Optional color: black/(silver and gray)
  • Minimum illumination of 1.0 Lux/F2.0 (AGC maximum), 0.001 Lux(DSS) digital day/night
  • Powerful WDR (wide dynamic range) performance
  • Privacy image masking 4 areas
  • 5 motion detection
  • Auto dynamic noise reduction
  • Colors/(black and white), double IR filters
  • Multiple language OSD
  • Image sensor: 1/3-inch Sony CCD II
  • Signal system: PAL/NTSC
  • Horizontal resolution: 650, 700TVL
  • Whole pixels:
    • PAL (H x V): 795 x 596 pixels
    • NTSC (H x V): 811 x 508 pixels
  • Effective pixels:
  • PAL (H x V): 752 x 582 pixels/440K
  • NTSC (H x V): 768 x 494 pixels/380K
  • PAL (H x V): 795 x 596 pixels
  • NTSC (H x V): 811 x 508 pixels
