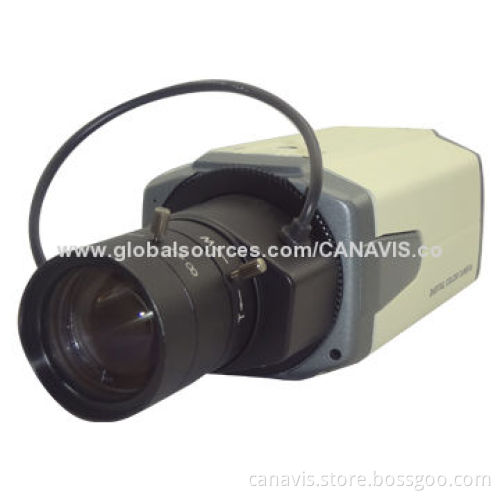

WDR Camera, 650, 700TVL Horizontal Resolution, Multiple Languages OSD

Get Latest Price

Payment Type:: TT

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT

Product Description

Specifications:

Minimum illumination of 1.0 Lux/F2.0 (AGC maximum), 0.001 Lux (DSS) digital day/night
Powerful WDR (wide dynamic range) performance
Privacy image masking 4 areas
5 motion detection
Auto dynamic noise reduction
Colors/(black and white), double IR filters
Multiple languages OSD
Image sensor: 1/3-inch Sony CCD II
Signal systems: PAL/NTSC
Horizontal resolution: 650, 700TVL
Whole pixels:
- PAL (H x V): 795 x 596
- NTSC (H x V): 811 x 508
Effective pixels:
- PAL (H x V): 752 x 582/440K
- NTSC (H x V): 768 x 494/380K
Shutter speed: 128 to 1/50 to 1/120,000 seconds
S/N ratio: >50dB (AGC off)
Lens mount: C/CS, back focus control lever
Scanning frequency (horizontal): 15.625kHz
Scanning frequency (vertical): 50Hz
Scanning system: 2:1 interlace
Minimum illumination: 0.3 Lux (color), 0.1 Lux (black and white), 0.0003 Lux (frame integration on）
Synchronization: internal
Video output: 1.0Vp-p composite (75Ω)
Color/(black and white): double IR filters (AGC mode)
Dynamic noise reduction: auto
White balance: auto
Back-light compensation: WDR/back-light compensation/off
OSD menu: OSD menu setting/setting through RS485 remote controlling
Flicker-less: on/off
Frame integration: maximum 128 FLD on/off
Mirror image: on/off
SLC (strong light control): on/off
Privacy: 4
Motion detection: 5
Auto gain: on/off
Working temperature: -10 to 50ºC
Storage temperature: -20 to 60ºC
Power supply: 12V DC (10 to 15V)
Power consumption: 3W (maximum)
Working humidity range: 80 to 90% RH (maximum)
Dimensions: 115 x 70 x 62mm
Weight: 350g
Optional colors: black/(silver and gray)
