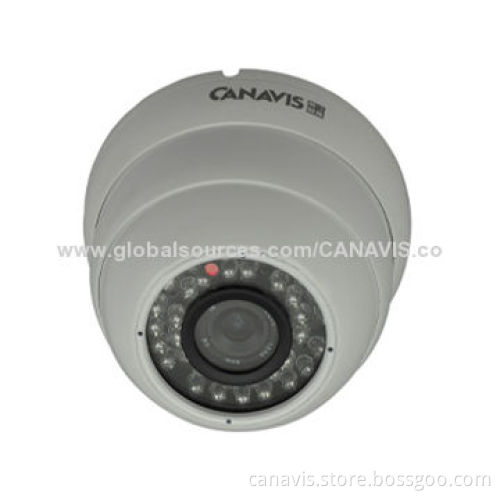

Indoor Dome Camera, 1/3-inch Sony Super HAD CCD II and 1/3-inch Sony Ex-view HAD CCD II Image Sensor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Image sensor: 1/3-inch Sony super HAD CCD II and 1/3-inch Sony Ex-view HAD CCD II

Horizontal resolution: 420, 520, 600 and 650TVL

Effective resolution:

Shutter speed: 1/50(1/60) to 1/100,000 seconds

S/N ratio: >48dB (AGC off, black and white) and >52dB (AGC off, black and white)

Lens fixed: 6mm

LEDs: 36, F5

IR distance: maximum 15m

Signal system: PAL/NTSC

Minimum illumination:

Scanning system: 2:1 interlace

Video output: 0.1 Lux (color), 0.01 Lux (black/white) and 0.00 Lux (IR on)

Synchronization: internal

White balance: 1.0Vp-p composite (75Ω)

Backlight compensation: auto

Auto-gain: auto

Day/night: auto

OSD menu: without OSD

Working temperature: -10 to 50°C

Storage temperature: -20 to 60°C

Power supply: 12V DC

Power consumption: <4.6, <5, <4.5 and <4.7W

Size: Ø119 x 88mm

Weight: 564g

PAL (H x V): 500 x 582/290K pixels

NTSC (H x V): 510 x 492/250K pixels

PAL (H x V): 752 x 582/440K pixels

NTSC (H x V): 768 x 494/380K pixels

PAL (H x V): 752 x 582/440K pixels

NTSC (H x V): 768 x 494/380K pixels

PAL (H x V): 976 x 582/570K pixels

NTSC (H x V): 976 x 494/480K pixels

PAL: 15625Hz/50Hz

NTSC: 15734Hz/59.94Hz
