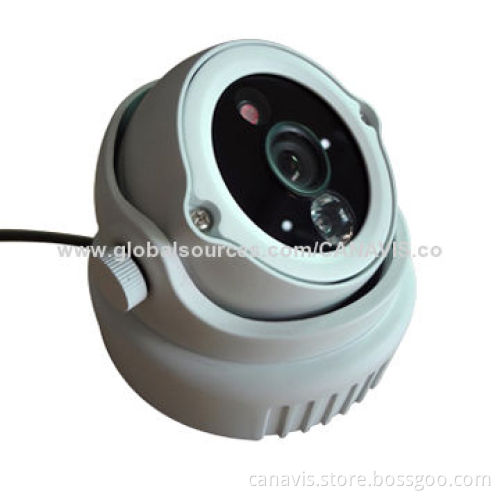

Array IR Series Camera, 1/3-inch Sony Super HAD CCD/1/3-inch Sony Ex-view HAD CCD Image Sensor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT

Product Description

Available modules: CA-366D1N, CA-366D1Q, CA-366D1G and CA-366D1E

Image sensor: 1/3-inch Sony super HAD CCD II and 1/3-inch Sony Ex-view HAD CCD II

Horizontal resolution: 420/520/600/650/700TVL

Effective resolution:

Shutter speed: 1/50 (1/60) to 1/100,000 seconds

S/N ratio: >48dB (AGC-off, black and white)

Lens: 3.6/6/8mm (optional)

LED quantity: 1 piece array LED

IR distance: 30m (maximum)

Signal system: PAL/NTSC

Scanning frequency:

Scanning system: 2:1 interlace

Minimum illumination: 0.1 (color), 0.01 (black and white) and 0.00 Lux (IR-on)

Synchronization: internal

Video output: 1.0Vp-p composite (75Ω)

Wavelength: 850nm

White balance: auto

Backlight compensation: auto

Auto-gain: auto

Day/night: auto

OSD menu

Working temperature: -10 to 50°C

Storage temperature: -20 to 60°C

Power supply: 12V DC

Power consumption: <9.4W

PAL (H x V): 500 x 582P/290K

NTSC (H x V): 510 x 492P/250K

PAL: 15,625/50Hz

NTSC: 15,734/59.94Hz
