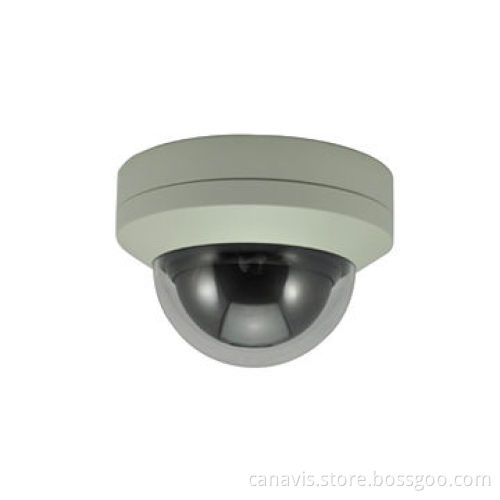

Indoor Dome Cameras with Sony 420, 520, 600, 650TVL, the Max 15 Meters Distance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Series: N-series Q-series G-series E-series

Module: CA-363N CA-363Q CA-363G CA-363E

Image sensor: 1/3" Sony super HAD CCD a 1/3" SONY EXVIEW HADCCD II

Horizontal resolution: 420TVL 520TVL 600TVL 650TVL

Effective pixels: PAL: 500(H)X582(V)/29OKNTSC: 510(H)X492(V)/250K

PAL: 752(H)X582(V)/44OK NTSC: 768(H)X494(V)/380K

PAL: 976(H)X582(V)/57OK NTSC: 976(H)X494(V)/480K

Shutter speed: 1/50(1/60)-1/100000s

S/N ratio: >48dB (AGC OFF, black & white) >52dB (AGCOFF and black & white)

Lens: Fixed: 6mm

LEDs: 36, F5 36, F5 36, F5 36 and F5

IR distance: MAX 15M

Signal system: PAL/NTSC

Min. Illumination: PAL:15625Hz/50Hz NTSC:15734Hz/59.94Hz

Scanning system: 2:1Interlace

Video output: 0.1Lux (COLOR), 0.01Lux (Black & White), 0.00Lux (Iron)

Synchronization: Internal

White balance: 1.0Vp-p composite(75©)

Backlight compensation: AUTO

Day/Night: AUTO

Auto Gain: AUTO

Day/Night: AUTO

OSD menu: Without OSD

Working temperatures: -10ºC~50ºC

Storage temperatures: -20ºC~60ºC

Power supply: 12VDC

Power consumption: < 4.6W < 5W < 4.5W < 4.7W

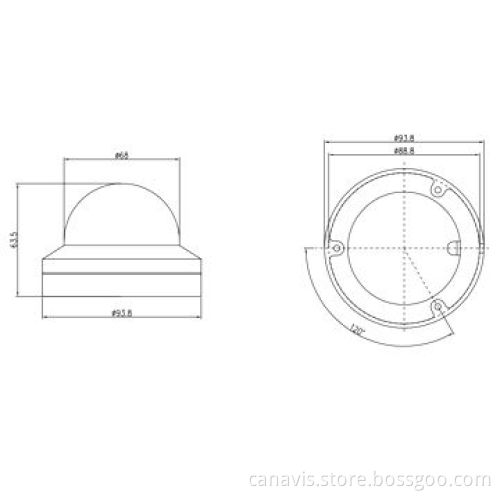

Size: 94X63mm

Weight: 281g
