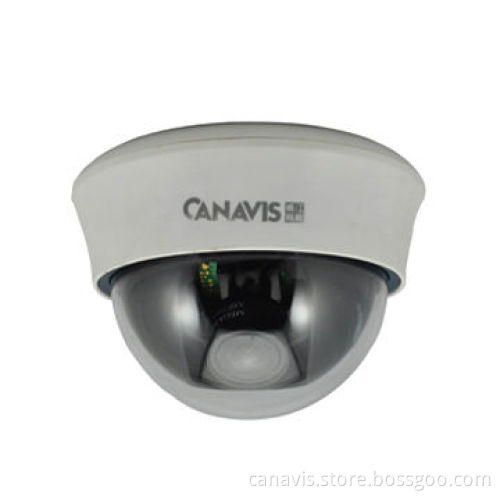

Indoor Dome Cameras, PAL/NTSC Signal System

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT

Product Description

Series: CA-321AN, CA-321AQ, CA-321AG and CA-321AE

Module: CA-320N, CA-320Q, CA-320G and CA-320E

Image sensor: 1/3-inch Sony super HAD CCD, 1/3-inch Sony Exview HAD CCD II

Horizontal resolution: 420TVL, 520TVL, 600TVL and 650TVL

Effective pixels:

Shutter speed: 1/50 (1/60) to 1/100,000s

Single-to-noise ratio:

Lens: fixed 6mm

LED quantity: 21 pieces, F5

IR distance: 15m (maximum)

Signal system and PAL/NTSC

Minimum illumination:

Scanning system: 2:1 interlace

Video output: 0.1lux (color), 0.01lux (black and white) and0.00lux (IR on)

Synchronization: internal

White balance: 1.0Vp-p composite (75Ω)

Backlight compensation: auto

Day/night: auto

Auto gain: auto

Day/night: auto

OSD menu: without OSD

Working temperatures: -10 to 50°C

Storage temperatures: -20 to 60°C

Power supply: 12V DC

Power consumption: 4.6W

Size: Φ129x92mm

Weight: 238g

PAL: (H) 752 x (V) 582/440K
NTSC: (H) 768 x (V) 494/380K

PAL: (H) 976 x (V) 582/570K
NTSC: (H) 976 x (V) 494/480K

>48dB (AGC off, black and white)

>52dB(AGC off, black and white)

PAL: 15,625Hz/50Hz

NTSC: 15,734Hz/59.94Hz
