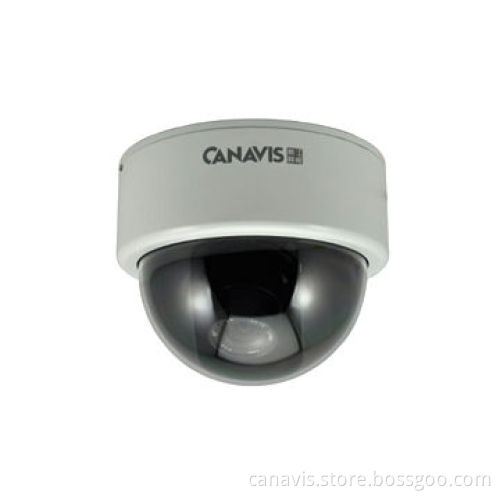

Indoor Dome Camera with Sony 420/520/600/650TVL, 21 Pieces of IR LEDs

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT

Product Description

Series: N-series, Q-series, G-series, E-series

Module: CA-323N, CA-323Q, CA-323G, CA-323E

Image sensor: 1/3-inch Sony Super HAD CCD a, Ex-view HAD CCDII

Horizontal resolution: 420, 520, 600, 650TVL

Effective pixels:

Shutter speed: 1/50 (1/60)-1/100,000 seconds

S/N ratio: >48dB (AGC-off, black and white), >52dB(AGC-off, black and white)

Lens: fixed: 6mm

LEDs: 21 pieces, F5

IR distance: 15m (maximum)

Signal systems: PAL/NTSC

Minimum illumination:

Scanning system: 2:1 interlace

Video output: 0.1 Lux (color), 0.01 Lux (black and white), 0.00Lux (IR-on)

Synchronization: internal

White balance: 1.0Vp-p composite (75©)

Backlight compensation: automatic

Day/night: automatic

Auto-gain: automatic

Day/night: automatic

OSD menu: without OSD

Working temperature: -10 to 50ºC

Storage temperature: -20 to 60ºC

Power supply: 12V DC

Power consumption: <4.6W

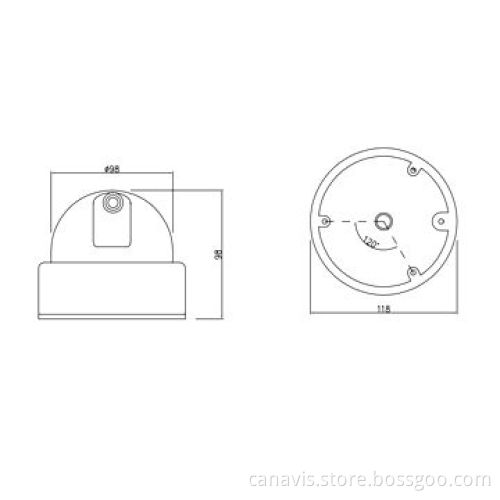

Size: ¦149 x 97mm

Weight: 888g

PAL (H x V): 500 x 582P/29OK, NTSC (H x V): 510 x492P/250K

PAL (H x V): 752 x 582P/44OK, NTSC (H x V): 768 x494P/380K

PAL (H x V): 976 x 582P/57OK, NTSC (H x V): 976 x494P/480K

PAL: 1,5625/50Hz

NTSC: 1,5734/59.94Hz
