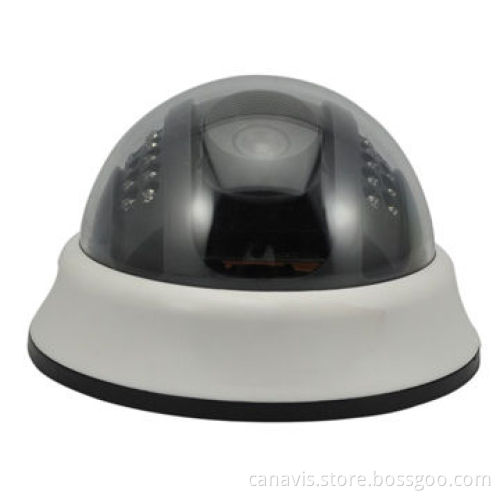

Indoor Dome Camera with 420, 520, 600 and 650TVL Horizontal Resolution, 12V DC Power Supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT

Product Description

Specifications:

Series: N-series, Q-series, G-series and E-series
Module: CA-322AN, CA-322AQ, CA-322AG and CA-322AE
Image sensor: 1/3-inch Sony super HAD CCD a, 1/3-inch Sony Ex-view HAD CCD II
Horizontal resolution: 420, 520, 600 and 650TVL
Effective pixels:
- PAL (H x V): 500 x 582 pixels/29OK
- NTSC (H x V): 510 x 492 pixels/250K
- PAL (H x V): 752 x 582 pixels/44OK
- NTSC (H x V): 768 x 494 pixels/380K
- PAL (H x V): 752 x 582 pixels/44OK
- NTSC (H x V): 768 x 494 pixels/380K
- PAL (H x V): 976 x 582 pixels/57OK
- NTSC (H x V): 976 x 494 pixels/480K
Shutter speed: 1/50(1/60)-1/100,000 seconds
S/N ratio: >48dB (AGC off, black and white), >52dB (AGC off, black and white)
Lens: 6mm fixed
PAL/NTSC:
- PAL: 15,625/50Hz
- NTSC: 15,734/59.94Hz
Signal system: 2:1 interlace
Minimum illumination: 0.1 Lux (color), 0.01 Lux (black andwhite), 0.00 Lux (IR on)
Scanning system: 2:1 interlace
Video output: 1.0Vp-p composite (75^©)
Synchronization: 850nm
White balance: 1.0Vp-p composite (75^©)
Backlight compensation: auto
Auto-gain: auto
Day/night: auto
OSD menu: without OSD
Working temperatures: -10-50ºC
Power supply: 12V DC
Power consumption: <4.6, <5, <4.5 and <4.7W
