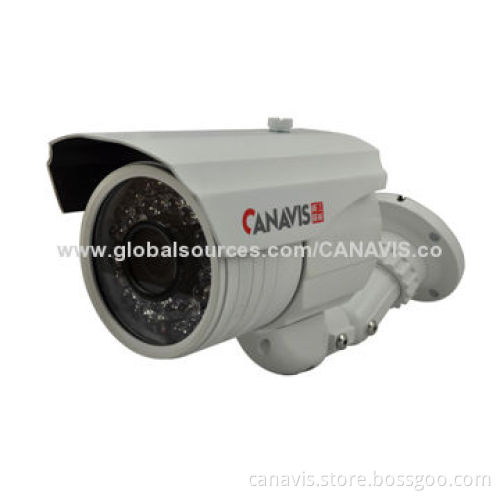

Varifocal Series CCTV Water-resistant Camera, 420, 520, 600, 650TVL Horizontal Resolution

Varifocal Series CCTV Water-resistant Camera, 420, 520, 600, 650TVL Horizontal Resolution

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

N-series/Q-series/G-series/E-Series

Modules: CA-713N, CA-713Q, CA-713G, CA-713E

Image sensor: 1/3-inch Sony super HAD CCD a 1/3-inch Sony Exview HAD CCD II

Horizontal resolution: 420, 520, 600, 650TVL

Effective pixels:

PAL (H x V): 500 X 582P/290K
NTSC (H x V): 510 x 492P/250K
PAL (H x V): 752 x 582/440K
NTSC (H x V): 768 x 494P/380K
PAL (H x V): 752 x 582P/440K
NTSC (H x V): 768 x 494P/380K
PAL (H x V): 976 x 582P/570K
NTSC (H x V): 976 x 494/480K

Shutter speed: 1/50 (1/60)-1/100,000 seconds

S/N ratio >48dB (AGC off, black and white) >48dB (AGC off, black and white), >52dB (AGC off, black and white) >52dB (AGC off, black and white)

Lens: vario (4-9mm), vario (4-9mm), vario (4-9mm), vario (4-9mm)

LEDs: 36, F5 36, F5 36, F5 36 pieces, F5

IR distance: 10-40, 10-40, 10-40, 10-40m (maximum)

Signal systems: PAL/NTSC

Scanning frequency:

PAL: 15625/50Hz
NTSC: 15734/59.94Hz

Scanning system: 2:1 interlace

Minimum illumination: 0.1 lux (color), 0.01 lux (black and white), 0.00 lux (IR on)

Synchronization: internal

Video output: 1.0Vp-p composite (75Ω)

Wavelength: 850Nm

White balance: auto

Backlight compensation: auto

Auto-gain: auto

Day/night: auto

OSD menu: the G/E series with OSD

Index-proof (IP): IP66

Working temperature: -10-50°C

Storage temperature: -20-60°C

Power supply: 12V DC

Power consumption: <4.6, <4.9, <4.5, <4.6W

Size: 254x80x121mm

Weight: 863g

PAL (H x V): 500 X 582P/290K

NTSC (H x V): 510 x 492P/250K

PAL (H x V): 752 x 582/440K

NTSC (H x V): 768 x 494P/380K

PAL (H x V): 752 x 582P/440K

NTSC (H x V): 768 x 494P/380K

PAL (H x V): 976 x 582P/570K

NTSC (H x V): 976 x 494/480K

PAL: 15625/50Hz

NTSC: 15734/59.94Hz
