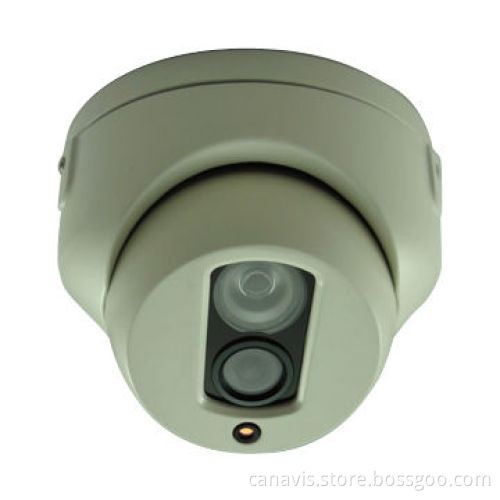

Array Series Camera, 1/3-inch Sony Super HAD CCD, 1/3-inch Sony Ex-View HAD CCD Image Sensor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Available modules: CA-325D1N, CA-325D1Q, CA-325D1G andCA-325D1E

Image sensor: 1/3-inch Sony Super HAD CCD II and 1/3-inch SonyEx-View HAD CCD II

Horizontal resolution: 420/520/600/650TVL

Effective resolution:

Shutter speed range: 1/50 (1/60) to 1/100,000 seconds

S/N ratio: >48dB (AGC off, black and white)

Lens: 4/6/8mm (optional)

LEDs: 1-piece array H.LED

IR distance: 30m maximum

Signal system: PAL/NTSC

Scanning frequency:

Scanning system 2: interlace

Minimum illumination: 0.1-lux (color), 0.01-lux (black andwhite) and 0.00-lux (IR on)

Synchronization: internal

Video output: 1.0Vp-p composite (75©)

Wavelength: 850nm

White balance: auto

Backlight compensation: auto

Auto gain: auto

Day/night: auto

OSD menu

Working temperatures: -10 to 50°C

Storage temperatures: -20 to 60°C

Power supply: 12V DC

Power consumption: <9.4W

PAL: (H) 500 x (V) 582/290K pixels

NTSC: (H) 510 x (V) 492/250K pixels

PAL: 15,625Hz/50Hz

NTSC: 15,734Hz/59.94Hz
