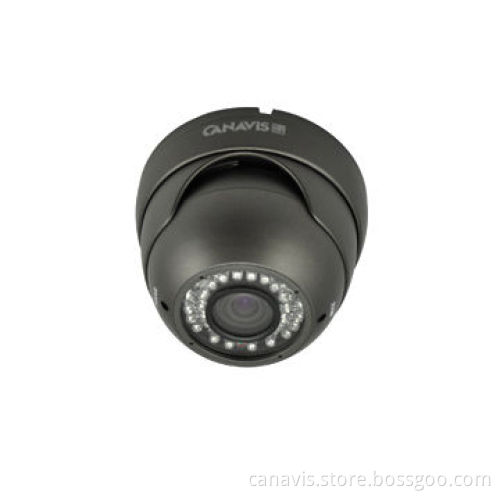

Varifocal Dome Cameras

Get Latest Price

Payment Type:: TT

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT

Product Description

Series: E-series

Module: CA-TJ313AE

Image sensor: 1/3-inch Sony Super HAD CCD II, 1/3-inch SonyExview HAD CCD II

Horizontal resolution: 700TVL

Effective pixels (H x V):

PAL: 500 x 582/29OK
NTSC: 510 x 492/250K
PAL: 752 x 582/44OK
NTSC: 768 x 494/380K
PAL: 752 x 582/44OK
NTSC: 768 x 494/380K
PAL: 976 x 582/57OK
NTSC: 976 x494/480K

Shutter speed: 1/50 (1/60)-1/100000s

S/N ratio: >48dB (AGC off, black and white), >52dB (AGCoff, black and white)

Lens: Vario (4-9mm)

LEDs: 36pcs, F5

IR distance: 10-30m

Signal system: PAL/NTSC

Scanning frequency:

PAL: 15625Hz/50Hz
NTSC: 15734Hz/59.94Hz

Minimum illumination: 0.1 lux (color), 0.01 lux (black and white), 0.00 lux (on)

Synchronization: internal

Video output: 1.0Vp-p composite (75Ω)

Wavelength: 850nm

White balance: auto

Backlight compensation: auto

Auto gain: auto

Day/night: auto

OSD menu: the G, E Series with OSD

Working temperature: -10 to 50ºC

Storage temperature: -20 to 60ºC

Power supply: 12V DC

Power consumption: <4.6W

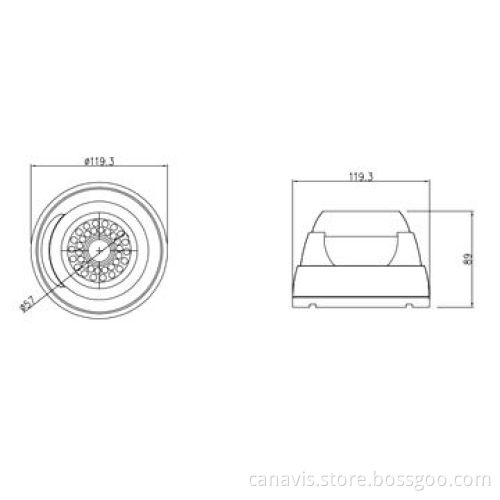

Size: 120 x 88mm

Weight: 715g

PAL: 500 x 582/29OK

NTSC: 510 x 492/250K

PAL: 752 x 582/44OK

NTSC: 768 x 494/380K

PAL: 752 x 582/44OK

NTSC: 768 x 494/380K

PAL: 976 x 582/57OK

NTSC: 976 x494/480K

PAL: 15625Hz/50Hz

NTSC: 15734Hz/59.94Hz
