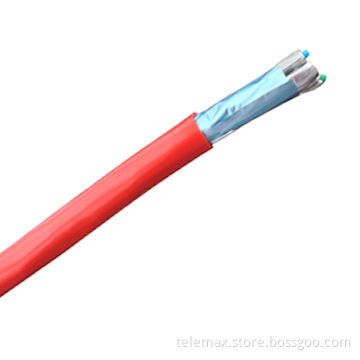

CAT 6 FTP LAN Cable, Eco-friendly
  • CAT 6 FTP LAN Cable, Eco-friendly
CAT 6 FTP LAN Cable, Eco-friendly

CAT 6 FTP LAN Cable, Eco-friendly

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Description:
    • Material: 23AWG bare copper
    • Adopts PE material to be dielectric, Al foil to be shield and fire-resistant material to be jacket
    • Besides, + type inner frame setting in center is nice for keeping balance and quality, which are so important for CAT 6 communication
    • Conform to related standards like ISO/IEC, TIA/EIA and EN
    • All electrical characteristics are exceed latest CAT 6 standards of ISO/IEC
    • LSZH: means low smoke zero halogen, which is symbol of eco-friendly
  • Electrical characteristics:
    • Return resistance: 14.9/100m
    • Impedance: 100 ±5
    • Static electric capacity: 46pF/m, 1kHz
    • Unbalance capacity: 100pF/100m
    • Rated communicate rate: 65%
  • Physical characteristics:
    • Copper diameter: 23AWG
    • Outer diameter: 6.8mm
    • Shielding material: Al foil
    • Weight: 13.9kg/kft
    • Minimum bend radius: 60mm
    • Maximum pulling tension: 10kg
    • Jacket material: PVC/LSZH
    • Rated temperature: -20 to 60°C
  • Applications:
    • 10/100/1000Mbps Ethernet
    • 100VG any LAN
    • Token ring
    • ATM155/ATM622
  • Standards:
    • ISO/IEC-11801 (2nd edition)
    • EN (2nd edition)
    • TIA/EIA-568B.2-1
  • Material: 23AWG bare copper
  • Adopts PE material to be dielectric, Al foil to be shield and fire-resistant material to be jacket
  • Besides, + type inner frame setting in center is nice for keeping balance and quality, which are so important for CAT 6 communication
  • Conform to related standards like ISO/IEC, TIA/EIA and EN
  • All electrical characteristics are exceed latest CAT 6 standards of ISO/IEC
  • LSZH: means low smoke zero halogen, which is symbol of eco-friendly
  • Return resistance: 14.9/100m
  • Impedance: 100 ±5
  • Static electric capacity: 46pF/m, 1kHz
  • Unbalance capacity: 100pF/100m
  • Rated communicate rate: 65%
  • Copper diameter: 23AWG
  • Outer diameter: 6.8mm
  • Shielding material: Al foil
  • Weight: 13.9kg/kft
  • Minimum bend radius: 60mm
  • Maximum pulling tension: 10kg
  • Jacket material: PVC/LSZH
  • Rated temperature: -20 to 60°C
  • 10/100/1000Mbps Ethernet
  • 100VG any LAN
  • Token ring
  • ATM155/ATM622
  • ISO/IEC-11801 (2nd edition)
  • EN (2nd edition)
  • TIA/EIA-568B.2-1
