Cat 6 UTP Lan Cable with IEC and EN standardsNew

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

S/N: TMUTP6305PVC

Description: 4 Pairs Cat 6 UTP 23 AWG LAN Cable PVC Jacket

Product description

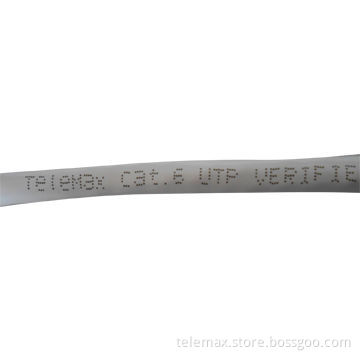

4 pairs 100 Cat.6 cable, adopt 23AWG bare copper to be the center conduction, PE to be the dielectric and fireproof material to be the jacket.
This cable is gray and conform to the standards like ISO/IEC, TIA/EIA and EN.
All the electrical characteristics are even exceed the latest Cat.6 standards of ISO/IEC. The “+” typer inner frame in the center ensures NEXT capacity and reasonable minimum bend radius.
LSZH: means “Low smoke zero halogen”, which is the symbol of environmental
protection.

Electrical characteristics

Impedance: 100±15
Return resistance: 9.4/100m
Unbalance resistance: ≤5%
Static electric capacity: 51pF/m 1KHz
Unbalance capacity: 73.2pF/100m
Roted communicate rate: 65%
Copper diameter: 23AWG
Impedance: 100±15
Outer diameter: 6.1±0.2mm
Weight: 13.5kg/kft
Minimum bend radius: 6-8×OD
Maximum pulling tension: ≤10
Jacket material: PVC/LSZH
Roted temperature: -20～60 deg. C
Packing: Telemax brand packing
10/100/1000Mbps Ethernet;
100VG-AnyLAN;
Token ring;
ATM155/ATM622 etc;
ISO/IEC-11801 (2nd edition)
EN (2nd edition)
TIA/EIA-568B.2-1

Physical charateristics:

Remark: PE, LSZH Jacket is optional

4 pairs 100 Cat.6 cable, adopt 23AWG bare copper to be the center conduction, PE to be the dielectric and fireproof material to be the jacket.

This cable is gray and conform to the standards like ISO/IEC, TIA/EIA and EN.

All the electrical characteristics are even exceed the latest Cat.6 standards of ISO/IEC. The “+” typer inner frame in the center ensures NEXT capacity and reasonable minimum bend radius.

LSZH: means “Low smoke zero halogen”, which is the symbol of environmental

protection.

Impedance: 100±15

Return resistance: 9.4/100m

Unbalance resistance: ≤5%

Static electric capacity: 51pF/m 1KHz

Unbalance capacity: 73.2pF/100m

Roted communicate rate: 65%

Copper diameter: 23AWG

Impedance: 100±15

Outer diameter: 6.1±0.2mm

Weight: 13.5kg/kft
