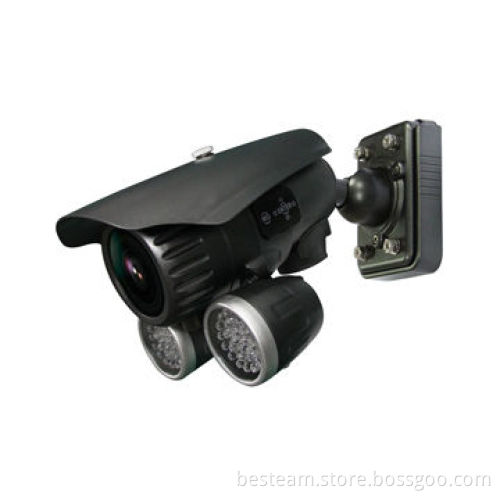

Vandal-resistant Pixim WDR 700TVL Weather-resistant IR Camera for Security System

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Super wide dynamic range 120dB

9-22mm lens

60m IR range

High resolution up to 690TVL effective

IP-66 weather-resistant standard

OSD menu

2V DC/24V AC duplicates power design. 1/3" DPS Sensor

Menu operation video format: PAL/NTSC

Minimum illumination: 0Lux IR on

S/N ratio: up to 50dB maximum (Y signal, AGC off)

ESS modes: 1x-32 x

AGC programmable up to 50dB

WDR: 120dB (maximum)

Iris control electronic iris/auto iris lens (DC drive)

Extended slow shutter: 2x/4x/8x/16x/32x

Noise reduction 3D motion adaptive

Digital zoom: 8x

White balance: ATW, AWB

Low light mode low speed shutter, AGC, sense-up B/W low speed shutter image

Day/Night: true and soft (B/W)

Sync mode: internal/line lock

Power voltage: 12V DC, 24V AC/12V DC

Current: ≤150mA (IR off) ≤750mA (IR on)

Video output: 1.0Vp-p/75Ω composite

Lens: 9-22 auto Iris lens

Operating temperature: -10-50℃

Storage temperature: -20-60℃

Dimension: 275*85*110mm

Weight: 1,400g
