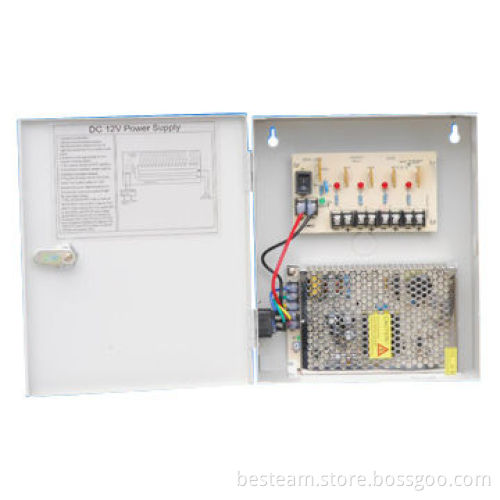

12V DC CCTV Power Supplies

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Up to 9 CCTV surveillance cameras
Voltage: 12V DC
5A total output
Maximum output current: up to 1.1A/channel
9 individually PTC auto-reset fuses protected outputs
Switch mode power supply (regulated voltage)
Integral surge protection
Individual LED power indication
Individual PTC resetable fuses
Internal on/off safety power switch with LED indicator
Beige metal housing

Technical specifications:

Power: 60W
Metal case dimensions: 24.5x20.8x8.3cm
Net weight: 2kg
Input voltage: 88 to 264V AC
Input voltage frequency: 50 to 60Hz
Average input current: 100V AC, ≤1.0A
Efficiency: ≥80%
Output voltage: 12V DC ±5%
Output current: 5A, 9-channel for 9 sets load
Output ripple noise (Vp-p): 80mVp-p at 25°C
Reply time of starting up: ≤3s input, 100V AC rated output load
Fuse type/rating: PTC, 1.1A/60V
Protection:
- Over-voltage: when over-voltage occurs, will switch to self-protection status to protect load
- Over-current:
  - When over-current occurs, corresponding channel output will automatically switch to self-protection status and other channels output will work normally
  - When fault is cleared, will switch back to normal
- Short-circuit:
  - When short-circuit occurs, individual PTC fuse will break circuit
  - When fault is cleared, will switch back to normal automatically
Working temperature: 0 to +50°C
Storage temperature: -20 to +80°C
Humidity: 20 to 90% RH
Heat release: natural heat dissipation
Connection:
- Input: three-pin socket
- Output: 9-channel output
Dielectric strength:
- Input to output: 1500V AC/60s, ≤1.5mA leakage current
- Input to FG: 1500V AC/60s, ≤2.0mA leakage current
- FG to output: 500V AC/60s, ≤1.5mA leakage current
Insulating strength:
- Input to output: ≥20MΩ/500V DC at 25°C
- Leakage current: ≤0.12mA at 110V AC/220V/25°C
- RG: ≤0.011Ω at 8V DC/25A/2°C

Up to 9 CCTV surveillance cameras

Voltage: 12V DC

5A total output

Maximum output current: up to 1.1A/channel

9 individually PTC auto-reset fuses protected outputs

Switch mode power supply (regulated voltage)

Integral surge protection

Individual LED power indication

Individual PTC resetable fuses

Internal on/off safety power switch with LED indicator

Beige metal housing

Power: 60W

Metal case dimensions: 24.5x20.8x8.3cm

Net weight: 2kg

Input voltage: 88 to 264V AC

Input voltage frequency: 50 to 60Hz

Average input current: 100V AC, ≤1.0A

Efficiency: ≥80%

Output voltage: 12V DC ±5%

Output current: 5A, 9-channel for 9 sets load

Output ripple noise (Vp-p): 80mVp-p at 25°C

Reply time of starting up: ≤3s input, 100V AC rated output load

Fuse type/rating: PTC, 1.1A/60V

Protection:

Over-voltage: when over-voltage occurs, will switch to self-protection status to protect load
Over-current:
- When over-current occurs, corresponding channel output will automatically switch to self-protection status and other channels output will work normally
- When fault is cleared, will switch back to normal
Short-circuit:
- When short-circuit occurs, individual PTC fuse will break circuit
- When fault is cleared, will switch back to normal automatically

Working temperature: 0 to +50°C

Storage temperature: -20 to +80°C

Humidity: 20 to 90% RH

Heat release: natural heat dissipation

Connection:

Input: three-pin socket
Output: 9-channel output

Dielectric strength:

Input to output: 1500V AC/60s, ≤1.5mA leakage current
Input to FG: 1500V AC/60s, ≤2.0mA leakage current
FG to output: 500V AC/60s, ≤1.5mA leakage current

Insulating strength:

Input to output: ≥20MΩ/500V DC at 25°C
Leakage current: ≤0.12mA at 110V AC/220V/25°C
RG: ≤0.011Ω at 8V DC/25A/2°C

Over-voltage: when over-voltage occurs, will switch to self-protection status to protect load

Over-current:

When over-current occurs, corresponding channel output will automatically switch to self-protection status and other channels output will work normally
When fault is cleared, will switch back to normal

Short-circuit:

When short-circuit occurs, individual PTC fuse will break circuit
When fault is cleared, will switch back to normal automatically

When over-current occurs, corresponding channel output will automatically switch to self-protection status and other channels output will work normally

When fault is cleared, will switch back to normal

When short-circuit occurs, individual PTC fuse will break circuit

When fault is cleared, will switch back to normal automatically

Input: three-pin socket

Output: 9-channel output

Input to output: 1500V AC/60s, ≤1.5mA leakage current

Input to FG: 1500V AC/60s, ≤2.0mA leakage current

FG to output: 500V AC/60s, ≤1.5mA leakage current

Input to output: ≥20MΩ/500V DC at 25°C

Leakage current: ≤0.12mA at 110V AC/220V/25°C

RG: ≤0.011Ω at 8V DC/25A/2°C
