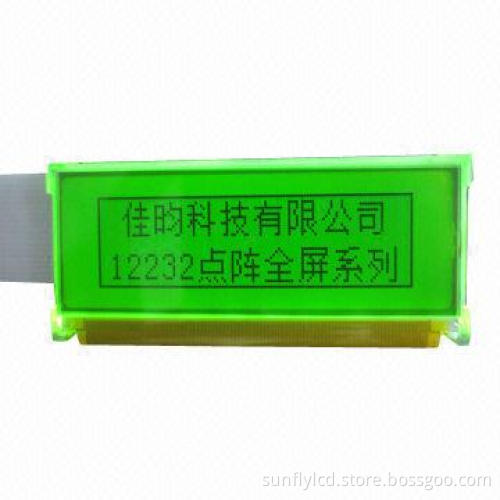

STN 122 x 32 Dot Matrix Graphic LCD Module
  • STN 122 x 32 Dot Matrix Graphic LCD Module
STN 122 x 32 Dot Matrix Graphic LCD Module

STN 122 x 32 Dot Matrix Graphic LCD Module

Get Latest Price
Payment Type:
T/T, L/C or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C or PayPal
Product Description
Product Description
  • Related parameters:
    • Outline dimensions: 65.4 x 29.1 x 6.0mm
    • LCD active area: 48.76 x 14.4mm
    • Dot matrix: 122 x 32 dots
    • Dot size: 0.36 x 0.41mm
    • Dot pitch: 0.40 x 0.45mm
    • Drive voltage: 5.0V
    • LCD type: STN mode
    • Connector: single pine 18 pins
    • Viewing angle: 6:00°
    • Operating temperature: -20 to +60°C
    • Storage temperature: -30 to +70°C
    • Polarizer mode: transflective/positive
    • IC assembly type: COB
    • Drive method: 1/32 duty, 1/5 bias
    • LCD thickness: 1.1mm
  • Applications:
    • Office electronic equipment
    • Apparatus and measurement appliance
    • Machinery
    • Audiovisual (display for car/portable DVD/long-distance terminal)
    • Home appliance (video door phone/video telephone)
    • Don't use it for high-sophisticated product which needs high-requirement in term of reliability, stability and accuracy
  • Outline dimensions: 65.4 x 29.1 x 6.0mm
  • LCD active area: 48.76 x 14.4mm
  • Dot matrix: 122 x 32 dots
  • Dot size: 0.36 x 0.41mm
  • Dot pitch: 0.40 x 0.45mm
  • Drive voltage: 5.0V
  • LCD type: STN mode
  • Connector: single pine 18 pins
  • Viewing angle: 6:00°
  • Operating temperature: -20 to +60°C
  • Storage temperature: -30 to +70°C
  • Polarizer mode: transflective/positive
  • IC assembly type: COB
  • Drive method: 1/32 duty, 1/5 bias
  • LCD thickness: 1.1mm
  • Office electronic equipment
  • Apparatus and measurement appliance
  • Machinery
  • Audiovisual (display for car/portable DVD/long-distance terminal)
  • Home appliance (video door phone/video telephone)
  • Don't use it for high-sophisticated product which needs high-requirement in term of reliability, stability and accuracy
