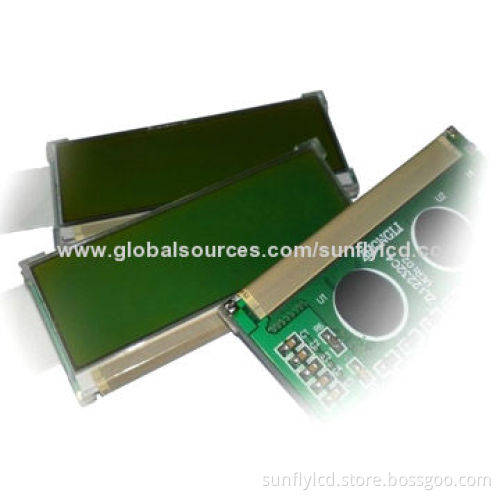

122x32 Dots Matrix LCD Display Modules, Supports Parallel Interface, 5V, STN Yellow Green Backlight
  • 122x32 Dots Matrix LCD Display Modules, Supports Parallel Interface, 5V, STN Yellow Green Backlight
  • 122x32 Dots Matrix LCD Display Modules, Supports Parallel Interface, 5V, STN Yellow Green Backlight
  • 122x32 Dots Matrix LCD Display Modules, Supports Parallel Interface, 5V, STN Yellow Green Backlight
122x32 Dots Matrix LCD Display Modules, Supports Parallel Interface, 5V, STN Yellow Green Backlight
122x32 Dots Matrix LCD Display Modules, Supports Parallel Interface, 5V, STN Yellow Green Backlight
122x32 Dots Matrix LCD Display Modules, Supports Parallel Interface, 5V, STN Yellow Green Backlight

122x32 Dots Matrix LCD Display Modules, Supports Parallel Interface, 5V, STN Yellow Green Backlight

Get Latest Price
Payment Type:
T/T, L/C or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C or PayPal
Product Description
Product Description
  • Related parameters:
    • Outline dimensions: 65.4 x 29.1 x 6.0mm
    • LCD active area: 48.76 x 14.4mm
    • Dot matrix: 122 x 32 dots
    • Dot size: 0.36 x 0.41mm
    • Dot pitch: 0.40 x 0.45mm
    • Drive voltage: 5.0V
    • LCD type: STN mode
    • Connector: single pine 18 pins
    • Viewing angle: 6:00°
    • Operating temperature: -20 to +60°C
    • Storage temperature: -30 to +70°C
    • Polarizer mode: transflective/positive
    • IC assembly type: COB
    • Drive method: 1/32 duty, 1/5 bias
    • LCD thickness: 1.1mm
  • Applications:
    • Office electronic equipment
    • Apparatus and measurement appliance
    • Machinery
    • Audiovisual (display for car/portable DVD/long-distance terminal)
    • Home appliance (video door phone/telephone)
    • Don't use it for high-sophisticated product which needs high-requirement in term of reliability, stability and accuracy
  • Outline dimensions: 65.4 x 29.1 x 6.0mm
  • LCD active area: 48.76 x 14.4mm
  • Dot matrix: 122 x 32 dots
  • Dot size: 0.36 x 0.41mm
  • Dot pitch: 0.40 x 0.45mm
  • Drive voltage: 5.0V
  • LCD type: STN mode
  • Connector: single pine 18 pins
  • Viewing angle: 6:00°
  • Operating temperature: -20 to +60°C
  • Storage temperature: -30 to +70°C
  • Polarizer mode: transflective/positive
  • IC assembly type: COB
  • Drive method: 1/32 duty, 1/5 bias
  • LCD thickness: 1.1mm
  • Office electronic equipment
  • Apparatus and measurement appliance
  • Machinery
  • Audiovisual (display for car/portable DVD/long-distance terminal)
  • Home appliance (video door phone/telephone)
  • Don't use it for high-sophisticated product which needs high-requirement in term of reliability, stability and accuracy
