Thermal Switch/Bimetal Thermostat, Auto Reset, Without Bracket

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

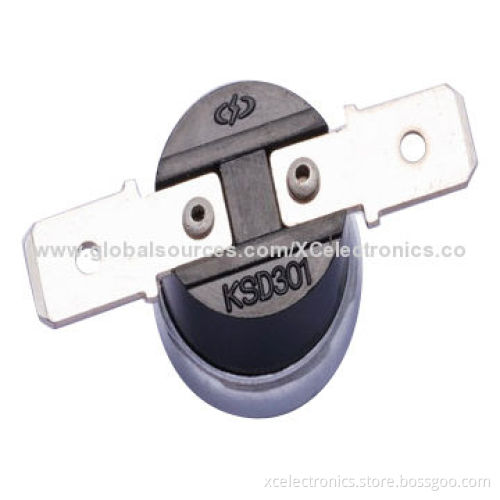

Auto reset thermostat, KSD 301-109PA/B, bimetal disc, normally open or normally close, without bracket, 6.3 or 4.8mm horizontal terminal, plastic body

Standards:

UL873, CSA C22.2 NO 24-93
EN60730-1 2000+A11
EN60730-2-9:2002
GB14536.1-2008 idt IEC730-1
GB14536.10-2008 idt IEC730-2-9-1992

Electrical performance:

Rated voltage: 250/125V AC, 50-60Hz
Rated current: 10/15A of resistive load
Switch type and number of poles: 1 pole opener
Protection degree: IP00
Action type: 1B
Approved symbol:
- 250V/10A: CQC, TÜV, VDE, UL
- 125V/15A: UL
Operating cycles:
- 250V/10A: CQC, TÜV 10,000, VDE, UL 100,000
- 125V/15A: UL 6,000
Insulation material PTI value: 175V
Resistance of contact: ≤50mΩ (original state)
Resistance of insulated: ≥100MΩ (500V DC normality)
Test voltage: ≥1,500V/1 minute (normality)
