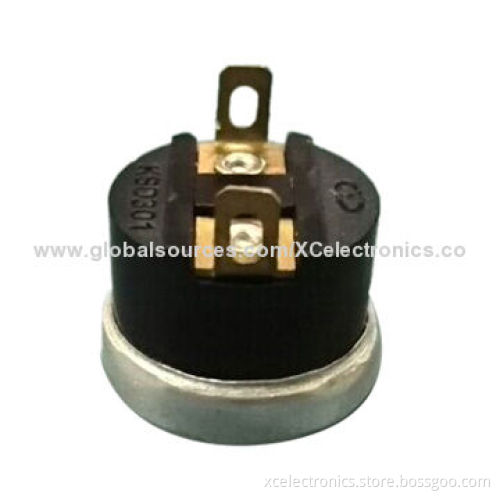

Thermal Switch/Bimetal Thermostat, Auto-reset Without Bracket
  • Thermal Switch/Bimetal Thermostat, Auto-reset Without Bracket
Thermal Switch/Bimetal Thermostat, Auto-reset Without Bracket

Thermal Switch/Bimetal Thermostat, Auto-reset Without Bracket

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Description:
    • Auto-reset,  KSD 301-109PD, bimetal disc, normally open or normally close
    • With fixed bracket
    • 6.3 or 4.8mm vertical terminal, phenolic body
  • Standards:
    • UL873, CSA C22.2 number 24-93
    • EN60730-1 2000+A11
    • EN60730-2-9:2002
    • GB14536.1-2008 IDT IEC730-1
    • GB14536.10-2008 IDT IEC730-2-9-1992
  • Electric performance:
    • Rated voltage: 250/125V AC, 50-60Hz
    • Rated current:10/15A of resistive loading
    • Switch type and number of poles: 1 pole opener
    • Protection degrees: IP00
    • Action type: 1B
    • Approved symbol:
      • 250V/10A: CQC, TUV,  VDE, UL
      • 125V/15A: UL
    • Operating cycles:
      • 250V/10A: CQC, TUV 10,000, VDE, UL 100,000
      • 125V/15A: UL 6,000
    • Insulation material PTI value: 175V
    • Resistance of contact: ≤50mΩ (original state)
    • Resistance of insulated: ≥100mΩ (500V DC normality)
    • Test voltage: ≥1,500V/1 minute (normality)
  • Auto-reset,  KSD 301-109PD, bimetal disc, normally open or normally close
  • With fixed bracket
  • 6.3 or 4.8mm vertical terminal, phenolic body
  • UL873, CSA C22.2 number 24-93
  • EN60730-1 2000+A11
  • EN60730-2-9:2002
  • GB14536.1-2008 IDT IEC730-1
  • GB14536.10-2008 IDT IEC730-2-9-1992
  • Rated voltage: 250/125V AC, 50-60Hz
  • Rated current:10/15A of resistive loading
  • Switch type and number of poles: 1 pole opener
  • Protection degrees: IP00
  • Action type: 1B
  • Approved symbol:
    • 250V/10A: CQC, TUV,  VDE, UL
    • 125V/15A: UL
  • Operating cycles:
    • 250V/10A: CQC, TUV 10,000, VDE, UL 100,000
    • 125V/15A: UL 6,000
  • Insulation material PTI value: 175V
  • Resistance of contact: ≤50mΩ (original state)
  • Resistance of insulated: ≥100mΩ (500V DC normality)
  • Test voltage: ≥1,500V/1 minute (normality)
  • 250V/10A: CQC, TUV,  VDE, UL
  • 125V/15A: UL
  • 250V/10A: CQC, TUV 10,000, VDE, UL 100,000
  • 125V/15A: UL 6,000
