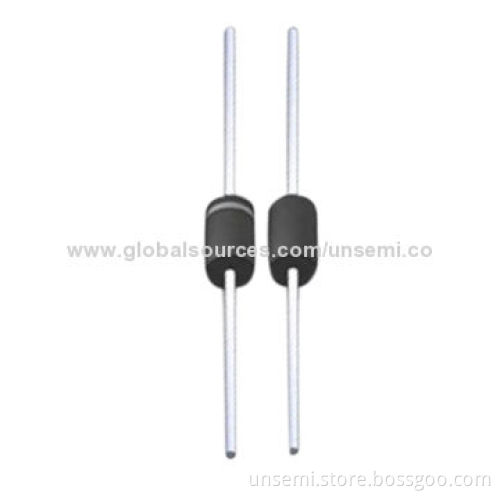

Transient Voltage Suppressor Diode, DO201

Get Latest Price

Payment Type:: T/T in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Description:

The 1.5KE series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Features:

Glass passivated chip junction in DO-201 package
Low leakage
Uni and bi-directional unit
Excellent clamping capability
1500W peak power capability at 10 x 1000µs waveform repetition rate (duty cycle): 0.01%
Fast response time: typically less than 1.0ps from 0 volts to VBR minimum
Typical IR less than 5μA above 12V
High temperature soldering: 260°C/40 seconds at terminals
Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT
Plastic package has underwriters laboratory flammability 94V-0
Matte tin lead-free plated
Halogen-free and RoHS-compliant
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
IEC-61000-4-2 ESD 15kV (air), 8kV (contact)
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

Applications:

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications

The 1.5KE series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events

Glass passivated chip junction in DO-201 package

Low leakage

Uni and bi-directional unit

Excellent clamping capability

1500W peak power capability at 10 x 1000µs waveform repetition rate (duty cycle): 0.01%

Fast response time: typically less than 1.0ps from 0 volts to VBR minimum

Typical IR less than 5μA above 12V

High temperature soldering: 260°C/40 seconds at terminals

Typical maximum temperature coefficient ΔVBR = 0.1% × VBR@25°C× ΔT

Plastic package has underwriters laboratory flammability 94V-0

Matte tin lead-free plated

Halogen-free and RoHS-compliant

Typical failure mode is short from over-specified voltage or current

Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

IEC-61000-4-2 ESD 15kV (air), 8kV (contact)

ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)

EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)

TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications
