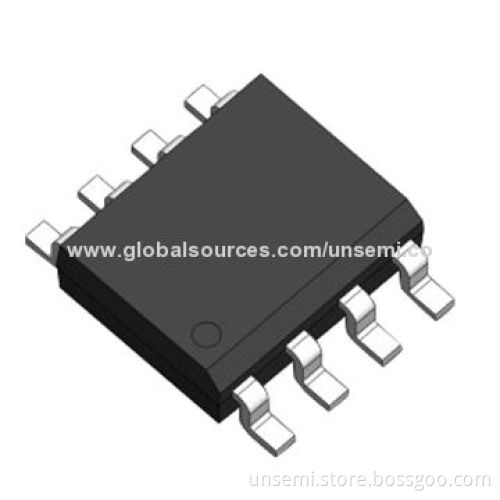

ESD Array, Electrostatic Discharge Protection SO-08
  • ESD Array, Electrostatic Discharge Protection SO-08
ESD Array, Electrostatic Discharge Protection SO-08

ESD Array, Electrostatic Discharge Protection SO-08

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Description:
    • The ESDXXV08S-4L is in an SO-08 package and may be used to protect two high-speed line pairs
    • The “flow-thru” design minimizes trace inductance and reduces voltage overshoot associated with ESD events
    • The low clamping voltage of the ESDXXV08S-4L minimizes the stress on the protected IC
  • Features:
    • 500W peak pulse power per line (tp=8/20μs)
    • Protects four high-speed I/O lines
    • Low capacitance (5pF) for high-speed interfaces
    • Low clamping and operating voltage
    • Compliant with RoHS Directive
    • IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
    • IEC61000-4-4 (EFT) 40A (5/50ηs)
    • IEC61000-4-5 (Lightning) 24A (8/20μs)
  • Applications:
    • USB power and data line protection
    • T1/E1 secondary IC side protection
    • T3/E3 secondary IC side protection
    • HDSL, SDSL secondary IC side protection
    • Video line protection
    • Microcontroller input protection
    • Base stations
    • I2C Bus protection
  • Mechanical characteristics:
    • JEDEC SO-08 package
    • Molding compound flammability rating : UL 94V-0
    • Weight: 70 milligrams (approximately)
    • Quantity per reel : 2,500pcs
    • Reel size : 13 inches
    • Lead finish: lead-free
  • The ESDXXV08S-4L is in an SO-08 package and may be used to protect two high-speed line pairs
  • The “flow-thru” design minimizes trace inductance and reduces voltage overshoot associated with ESD events
  • The low clamping voltage of the ESDXXV08S-4L minimizes the stress on the protected IC
  • 500W peak pulse power per line (tp=8/20μs)
  • Protects four high-speed I/O lines
  • Low capacitance (5pF) for high-speed interfaces
  • Low clamping and operating voltage
  • Compliant with RoHS Directive
  • IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
  • IEC61000-4-4 (EFT) 40A (5/50ηs)
  • IEC61000-4-5 (Lightning) 24A (8/20μs)
  • USB power and data line protection
  • T1/E1 secondary IC side protection
  • T3/E3 secondary IC side protection
  • HDSL, SDSL secondary IC side protection
  • Video line protection
  • Microcontroller input protection
  • Base stations
  • I2C Bus protection
  • JEDEC SO-08 package
  • Molding compound flammability rating : UL 94V-0
  • Weight: 70 milligrams (approximately)
  • Quantity per reel : 2,500pcs
  • Reel size : 13 inches
  • Lead finish: lead-free
