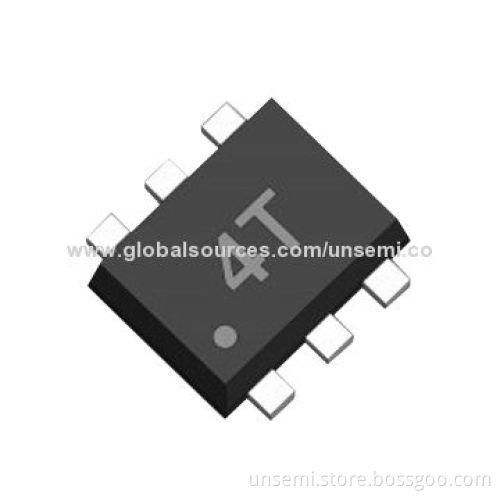

ESD,SOT-563 Electrostatic Discharge Protection, 5V Working Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

Designed to protect voltage sensitive components from ESD and transient voltage events
Good clamping capability and low leakage
Fast response time, make these parts ideal for ESD protection on designs where board space is at premium

Features:

Applications:

Mechanical characteristics:

Designed to protect voltage sensitive components from ESD and transient voltage events

Good clamping capability and low leakage

Fast response time, make these parts ideal for ESD protection on designs where board space is at premium

100W peak pulse power per line (TP = 8/20μs)

Protects up to two I/O lines and power line

Low capacitance (<1.5pF) for high speed interfaces

Working voltage: 5V

Ultra-small packing requires: <2.9mm2 of PCB area

IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

IEC61000-4-4 (EFT) 40A (5/50ηs)

USB 2.0 high speed

10/100/1000 Ethernet ports

High-definition multimedia lnterface (HDMI)

Digital visual interface (DVI)

Monitors and flat panel displays

Video graphics cards

IEEE 1394 fire wire ports high-speed

JEDEC SOT-563 packing

Molding compound flammability rating: UL 94V-0

Weight 3.0m (approximate)

Quantity: 3,000 pieces/reel

Reel size: 7-inch

Lead finish: lead-free
