ESD array,Electrostatic Discharge Protection Array, RoHS Directive-compliant

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Description:

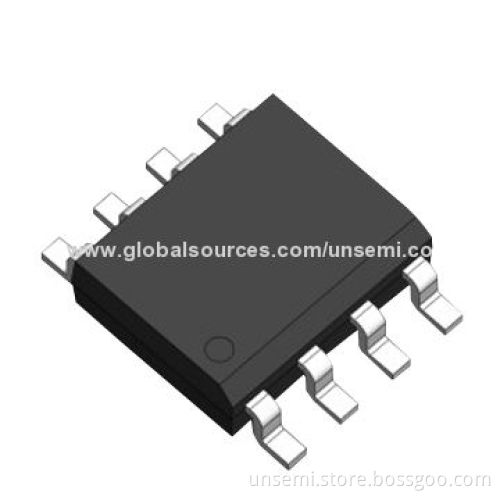

SO-08 package and may be used to protect two high-speed line pairs
Flow-thru design minimizes trace inductance and reduces voltage overshoot associated with ESD events
Low clamping voltage of LCDAXXC-4 minimizes stress on protected IC

Features:

Applications:

Mechanical characteristics:

SO-08 package and may be used to protect two high-speed line pairs

Flow-thru design minimizes trace inductance and reduces voltage overshoot associated with ESD events

Low clamping voltage of LCDAXXC-4 minimizes stress on protected IC

500W peak pulse power per Line (tp=8/20μs)

Protects four I/O lines

Low capacitance for high-speed data lines

RoHS Directive-compliant

IEC61000-4-2 (ESD) ±15kV (air) and ±8kV (contact)

IEC61000-4-4 (EFT) 40A (5/50ηs)

IEC61000-4-5 (lightning) 24A (8/20μs)

High-speed data lines

Microprocessor based equipment

Test and measurement equipment

Notebooks, desktops and servers

Instrumentation

Audio/video Inputs

LAN/WAN equipment

Peripherals

JEDEC SO-08 packing

Molding compound flammability rating: UL 94V-0

Weight 70 milligrams (approximate)

Packing:

Reel size: 7-inch

Lead finish: lead-free

Quantity : 500 pieces/carton
