Product Description
Product Description
  • Description:
    • ESD05V32T-2LC is designed to protect voltage sensitive components from ESD and transient voltage events
    • Good clamping capability, low leakage and fast response time, makes these parts ideal for ESD protection on designs where board space is at premium
  • Features:
    • 100W peak pulse power per line (tp=8/20μs)
    • Protects two lines in common mode or one line in differential mode
    • Low clamping voltage
    • Working voltage: 5.0V
    • Low leakage current
    • IEC61000-4-2 (ESD): ±15kV (air) and ±8kV (contact)
    • IEC61000-4-4 (EFT): 40A (5/50ηs)
    • IEC61000-4-5 (lightning): 2A (8/20μs)
  • Applications:
    • Cellular handsets and accessories
    • High speed I/O lines
    • USB ports
    • Serial ATA
    • PCI express
    • Servers, notebook and desktop PC
    • DisplayPorts
  • Mechanical characteristics:

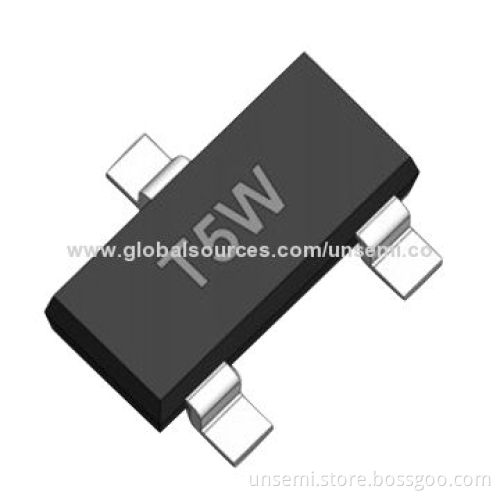

    • SOT-323 packing
    • Molding compound flammability rating: UL 94V-0
    • Weight 8.0mg (approximately)
    • Quantity: 3,000 pieces/reel
    • Reel size: 7-inch
    • Lead finish: lead-free
  • ESD05V32T-2LC is designed to protect voltage sensitive components from ESD and transient voltage events
  • Good clamping capability, low leakage and fast response time, makes these parts ideal for ESD protection on designs where board space is at premium
  • 100W peak pulse power per line (tp=8/20μs)
  • Protects two lines in common mode or one line in differential mode
  • Low clamping voltage
  • Working voltage: 5.0V
  • Low leakage current
  • IEC61000-4-2 (ESD): ±15kV (air) and ±8kV (contact)
  • IEC61000-4-4 (EFT): 40A (5/50ηs)
  • IEC61000-4-5 (lightning): 2A (8/20μs)
  • Cellular handsets and accessories
  • High speed I/O lines
  • USB ports
  • Serial ATA
  • PCI express
  • Servers, notebook and desktop PC
  • DisplayPorts
  • SOT-323 packing
  • Molding compound flammability rating: UL 94V-0
  • Weight 8.0mg (approximately)
  • Quantity: 3,000 pieces/reel
  • Reel size: 7-inch
  • Lead finish: lead-free
