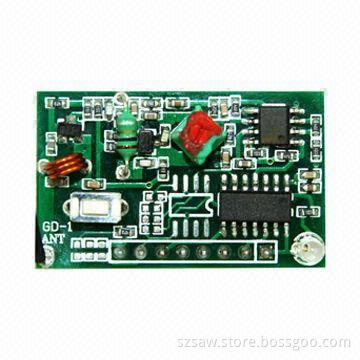

Super-hetero-dyne, RF module, CE, FCC certification
  • Super-hetero-dyne, RF module, CE, FCC certification
Super-hetero-dyne, RF module, CE, FCC certification

Super-hetero-dyne, RF module, CE, FCC certification

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Super-hetero-dyne: High sensitivity, the receiving frequency isstable, easily through the CE, FCC certifications. The productconsistency is good, high ratio of performance to price
  • Technical parameters:
    • Working voltage: DC5V
    • Operating frequency: 315,433.92MHz ( optional)
    • Working current: 6mA
    • Receiving sensitivity: -110dBm
    • Coding: coding (pad fixed code)
    • Working mode: M6 (point), L6 (interlock)
  • Modulation amplitude modulation (OOK):
    • Operating temperatures: -20 ~85
    • Size: 40 x 25 x 9mm
  • Areas of application: wireless remote controls, datatransmissions, anti-theft alarms, garage doors, gates, the brakes,extendable doors and so on
  • VCC voltage is consistent to the module voltage, and to do wellthe power filtering antenna position has great influence of themodule reception, had better take a quarter wavelength of antenna,generally use the 50 ohm single core wires, the length of theantenna about 315 frequency is the 23cm, 433 frequency is 17cm
  • Pin name description:
    • 1VCC positive pole of the power supply
    • 2 GND power cathode
    • 3 D0data output
    • 4 D1data output
    • 5 D2data output
    • 6 D3data output
    • 7 D4data output
    • 8 D5data output
    • 9 VT output status indication
  • Working voltage: DC5V
  • Operating frequency: 315,433.92MHz ( optional)
  • Working current: 6mA
  • Receiving sensitivity: -110dBm
  • Coding: coding (pad fixed code)
  • Working mode: M6 (point), L6 (interlock)
  • Operating temperatures: -20 ~85
  • Size: 40 x 25 x 9mm
  • 1VCC positive pole of the power supply
  • 2 GND power cathode
  • 3 D0data output
  • 4 D1data output
  • 5 D2data output
  • 6 D3data output
  • 7 D4data output
  • 8 D5data output
  • 9 VT output status indication
