HDMI Interface Video Conference Camera

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specification:

Image sensor: 1/2.8" type exmor CMOS
Effective pix: 3.27 megapixel
Minimum illumination: 0.1lux
White balance: auto/manual
Gain control: auto/manual
Backlight compensation: on/off
Shutter speed: 1/1-1/10,000S
S/N ratio: >50db
Lens: focus f=4.7-90mm F1.6-3.5
Iris: auto/manual
Lens: 20 optical x 12 digital zoom
Horizontal viewing angle: 55.4

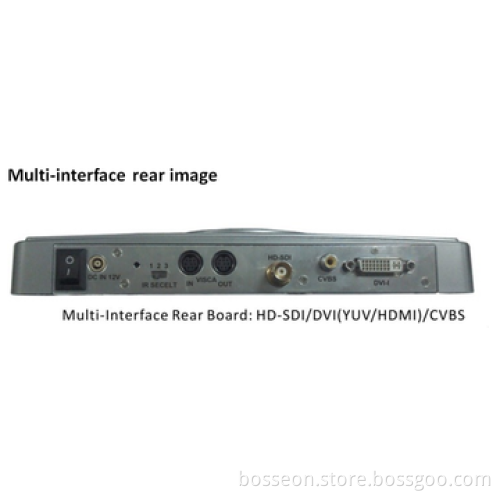

Video output: HDMI, HD-SDI, DVI , YPbPr, CVBS
Signal system: 1080P@30, 1080P@25, 1080i@60, 1080i@50, 720P@60, 720P@50, 720P@30, 720P@25, PAL and NTSC
Control terminal: EIA/RS232C,EIA/RS485 (Bidirectional)
Control protocol: VISCA, PELCO-D
Patrol line: 4 cruise sequence
Preset position: 64 preset positions
Pan movement speed: 1-200°/second
Tilt movement speed: 1-150°/second
Pan movement range: Pan: 0-355°
Tilt movement range: Up: 45°, Down: 45°
Boundary scanning: 0-355°(programmable)
Remote controller: IR wireless remote controller P/T/Z
Power supply range: DC12V,2A
Work temperatures: 0-50℃
Humidity range: 0-95%RH
L x W x H: 250mm x 140mm x 154mm
Weight: 1380g

Features:

Private tooling design high definition PTZ camera
Fast and smooth video handling
Power on-off switch
Work and standby LED indicator
Speed match
Auto/manual focus/brightness/WB
RS-232C/VISCA protocol
Lens/dome OSD
Boundary scanning
Standby and wakeup status
Swap video format
DVI/HD-SDI video output

Installation:

Desktop
Ceiling mount
Standard tripod accessory

Image sensor: 1/2.8" type exmor CMOS

Effective pix: 3.27 megapixel

Minimum illumination: 0.1lux

White balance: auto/manual

Gain control: auto/manual

Backlight compensation: on/off

Shutter speed: 1/1-1/10,000S

S/N ratio: >50db

Lens: focus f=4.7-90mm F1.6-3.5

Iris: auto/manual

Lens: 20 optical x 12 digital zoom

Horizontal viewing angle: 55.4

Video output: HDMI, HD-SDI, DVI , YPbPr, CVBS

Signal system: 1080P@30, 1080P@25, 1080i@60, 1080i@50, 720P@60, 720P@50, 720P@30, 720P@25, PAL and NTSC

Control terminal: EIA/RS232C,EIA/RS485 (Bidirectional)

Control protocol: VISCA, PELCO-D

Patrol line: 4 cruise sequence

Preset position: 64 preset positions

Pan movement speed: 1-200°/second

Tilt movement speed: 1-150°/second

Pan movement range: Pan: 0-355°

Tilt movement range: Up: 45°, Down: 45°

Boundary scanning: 0-355°(programmable)

Remote controller: IR wireless remote controller P/T/Z

Power supply range: DC12V,2A

Work temperatures: 0-50℃

Humidity range: 0-95%RH

L x W x H: 250mm x 140mm x 154mm

Weight: 1380g

Private tooling design high definition PTZ camera

Fast and smooth video handling

Power on-off switch

Work and standby LED indicator

Speed match

Auto/manual focus/brightness/WB

RS-232C/VISCA protocol

Lens/dome OSD

Boundary scanning

Standby and wakeup status

Swap video format

DVI/HD-SDI video output

Desktop

Ceiling mount

Standard tripod accessory
