USB 3.0 HD 3 optical x12 digital zoom 3.27 Megapixel video conferencing products

USB 3.0 HD 3 optical x12 digital zoom 3.27 Megapixel video conferencing products

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Main features

3 optical x 12 digital zoom
3.27 Megapixel
Lens f=3-9mm F1.2-F2.2
Hov 90 degree
USB 3.0 video output
VISCA, PELCO-D PTZ control protocol
IR remote controller

Specification:

Image sensor: 1/2.8"
Type: CMOS
Effective pixel: 3.27 Megapixel
Minimum illumination: 0.25Lux at F1.2
White balance: auto/manual/indoor/outdoor
Shutter speed: 1/1~1/10,000S, 22 steps
S/N ratio: >50db
Focus: f=3.00(wide) to 9mm(tele) F1.2-2.1
Iris: auto/manual
Lens: 3 optical x 12 digital zoom
Horizontal view angle: 1080i 90-30 degree 720p 60-21 degree
Video output: USB 3.0 interface
Signal system: YUY2 | 1,920x1,08030p, 1,280x 720 30p
Control terminal: EIA/RS232C, EIA/RS485 (bidirectional)
Control protocols: VISCA, PELCO-D
baud rate: 9,600/38,400bps
patrol line: 4 cruise sequence
preset position: 64 preset positions
Speed match: pan/tilt movement speed depends on camera module zoom in/out
OSD menu: access to OSD Menu and adjust camera module parameters
Image auto flip: supports horizontal/vertical image flip
Pan movement speed: 1-200°/second
Tilt movement speed: 1-150°/second
Pan movement range:
- Pan: 0-355°
Tilt movement range:
- Up: 45°
- Down: 45°
Pan scanning automatically: supports pan scanning automatically
Boundary scanning: 0-359° scanning (programmable)
Remote controller: IR wireless remote controller P/T/Z
Power supply: 12V DC, 2A
Working temperature: 0-50℃
Humidity: 0-95% RH

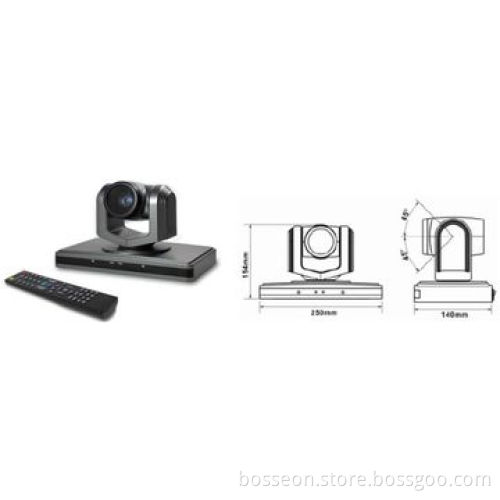

Size: 250 x 140 x 145mm
Weight: 2.6kg

3 optical x 12 digital zoom

3.27 Megapixel

Lens f=3-9mm F1.2-F2.2

Hov 90 degree

USB 3.0 video output

VISCA, PELCO-D PTZ control protocol

IR remote controller

Image sensor: 1/2.8"

Type: CMOS

Effective pixel: 3.27 Megapixel

Minimum illumination: 0.25Lux at F1.2

White balance: auto/manual/indoor/outdoor

Shutter speed: 1/1~1/10,000S, 22 steps

S/N ratio: >50db

Focus: f=3.00(wide) to 9mm(tele) F1.2-2.1

Iris: auto/manual

Lens: 3 optical x 12 digital zoom

Horizontal view angle: 1080i 90-30 degree 720p 60-21 degree

Video output: USB 3.0 interface

Signal system: YUY2 | 1,920x1,08030p, 1,280x 720 30p

Control terminal: EIA/RS232C, EIA/RS485 (bidirectional)

Control protocols: VISCA, PELCO-D

baud rate: 9,600/38,400bps

patrol line: 4 cruise sequence

preset position: 64 preset positions

Speed match: pan/tilt movement speed depends on camera module zoom in/out

OSD menu: access to OSD Menu and adjust camera module parameters

Image auto flip: supports horizontal/vertical image flip

Pan movement speed: 1-200°/second

Tilt movement speed: 1-150°/second

Pan movement range:

Pan: 0-355°

Tilt movement range:

Up: 45°
Down: 45°

Pan scanning automatically: supports pan scanning automatically

Boundary scanning: 0-359° scanning (programmable)

Remote controller: IR wireless remote controller P/T/Z

Power supply: 12V DC, 2A

Working temperature: 0-50℃

Humidity: 0-95% RH

Size: 250 x 140 x 145mm

Weight: 2.6kg

Pan: 0-355°

Up: 45°

Down: 45°
