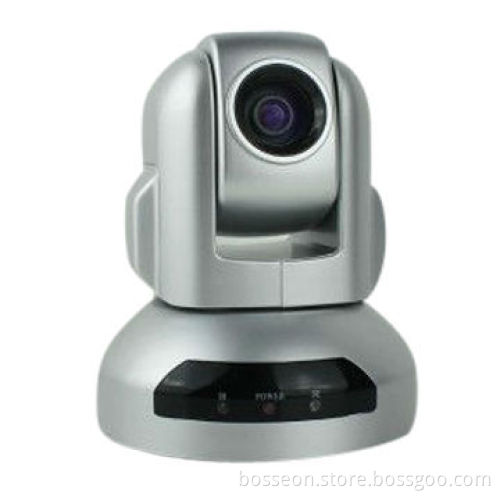

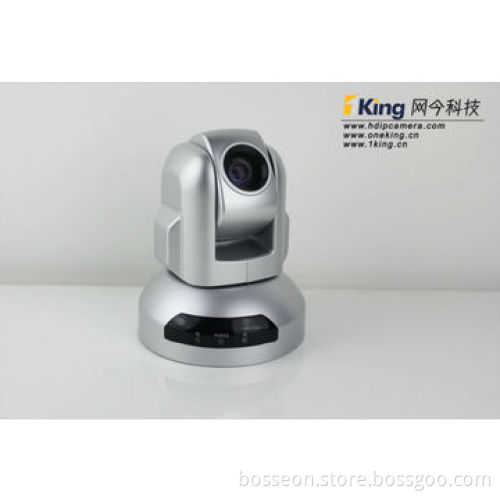

Video Conference Camera with HDMI/HD-SDI Video Output, 10x Optical Zoom, HDMI Pan Tilt Video Camera

Video Conference Camera with HDMI/HD-SDI Video Output, 10x Optical Zoom, HDMI Pan Tilt Video Camera

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Main features:

Optical zoom: 10x
2.0 megapixels
Lens:
- f = 5-50mm
- F = 2.0-2.8mm
HDMI and HD-SDI
Hov 48.4 degrees
VISCA, Pelco-D PTZ control protocol
IR remote controller

Specifications:

Image sensor: 1/2.5" color CMOS, 2.1MP compatible
Minimum scene illumination: 0.1lux at F1.8
White balance: auto/manual
Gain control: auto
Backlight compensation: on/off
Electronic shutter: 1/5-1/4000s
Signal-to-noise ratio: >50dB
Focus: auto
Iris: auto/manual

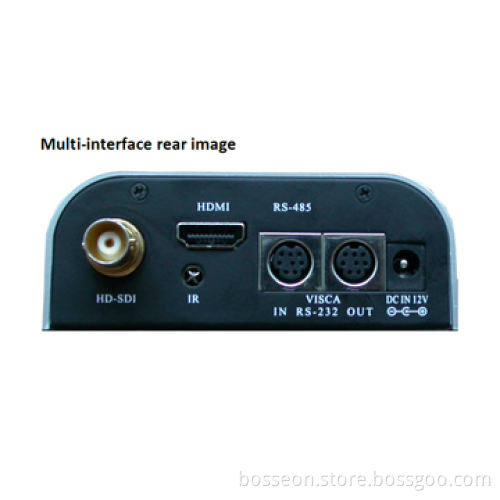

Video output: HD-SDI and HDMI
Video formats:
- 1080p at 30fps
- 1080p at 25fps
- 1080p at 24fps
- 1080i at 60fps
- 1080i at 50fps
- 720p at 60fps
- 720p at 50fps
Control decoder: EIA/RS485
Communication: EIA/RS232 (bidirectional)
PTZ control protocol: VISCA, Pelco-P and Pelco-D
Baud rate: 9600/38400bps
Patrol tours: 4
Preset: 64
Saves status after power-off: supported
Speed matching function: supported
OSD menu: supported
Image auto flip: supported
Pan speed: 0-100 degrees/s
Tilt speed: 0-80 degrees/s
Pan rotation angle: 359 degrees
Tilt rotation angle: 240 degrees
Auto pan scan: supported
Boundary scan: 0-359 degrees (programmable)
Remoter control: IR wireless remote control P/T/Z
Power: 12V DC ±10%, 1.2A
Operating temperatures: -10 to 60°C
Environment humidity range: 0-95% RH (non-condensation)
Weight: 800/1300g (net/package)

Optical zoom: 10x

2.0 megapixels

Lens:

f = 5-50mm
F = 2.0-2.8mm

HDMI and HD-SDI

Hov 48.4 degrees

VISCA, Pelco-D PTZ control protocol

IR remote controller

f = 5-50mm

F = 2.0-2.8mm

Image sensor: 1/2.5" color CMOS, 2.1MP compatible

Minimum scene illumination: 0.1lux at F1.8

White balance: auto/manual

Gain control: auto

Backlight compensation: on/off

Electronic shutter: 1/5-1/4000s

Signal-to-noise ratio: >50dB

Focus: auto

Iris: auto/manual

Video output: HD-SDI and HDMI

Video formats:

1080p at 30fps
1080p at 25fps
1080p at 24fps
1080i at 60fps
1080i at 50fps
720p at 60fps
720p at 50fps

Control decoder: EIA/RS485

Communication: EIA/RS232 (bidirectional)

PTZ control protocol: VISCA, Pelco-P and Pelco-D

Baud rate: 9600/38400bps

Patrol tours: 4

Preset: 64

Saves status after power-off: supported

Speed matching function: supported

OSD menu: supported

Image auto flip: supported

Pan speed: 0-100 degrees/s

Tilt speed: 0-80 degrees/s

Pan rotation angle: 359 degrees

Tilt rotation angle: 240 degrees

Auto pan scan: supported

Boundary scan: 0-359 degrees (programmable)

Remoter control: IR wireless remote control P/T/Z

Power: 12V DC ±10%, 1.2A

Operating temperatures: -10 to 60°C

Environment humidity range: 0-95% RH (non-condensation)

Weight: 800/1300g (net/package)

1080p at 30fps

1080p at 25fps

1080p at 24fps

1080i at 60fps

1080i at 50fps

720p at 60fps

720p at 50fps
