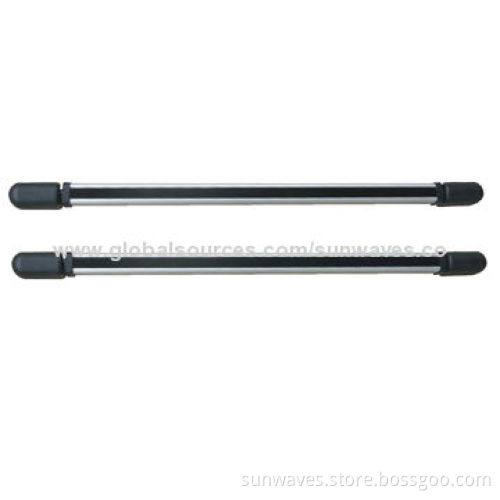

Photo Beam Frame Detector

Get Latest Price

Payment Type:: T/T 10 Days in Advance

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T 10 Days in Advance

Product Description

Features:

Long distance alert, specifications for purchase, enable customer to get the best value of the products, enhance the competitiveness;
Professional black filter, visible light has an excellent filter role, high transmittance to infrared light;
≤±4°auto focus circuit, voice prompted calibration,180° adjustable angle;
Alarming mode to intercept two adjacent beams simultaneously can avoid mistaken alarm caused by flying bird, butterfly and falling leaf intercepts single infrared beam through protection area;
Good anti-interference, unique software setting, specific device choose and buy as well as professional structure design, can eliminate jamming of strong light and anti-thunder/electromagnetic-jamming;
Strict anti-destroyed ability: when the guardrail screen is moved by human, the power line of receiving terminal is cut off and the power line or signal line of receiving terminal is cut off, the alarming signal output circuit will automatically output alarming signal

Parameters:

Model: SBW-04S010/SBW-04S030/SBW-04S060/SBW-04S100
Alarm range: 10M/30M/60M/100M
Max beam range: 60M/180M/360M/600M
Beam number: 4 beams
Operating current: 45mA
Transmitter: 40mA
Power supply:DC9-18V, 12VDC recommend
Trigger time (ms):40ms
Signal output mode: Wired (NC/NO)
Operating condition:
- Environment temperature: -25℃ to 55℃
- Relative humidity: ≤95%
Relay contact capacity: 1A/30VDC

Long distance alert, specifications for purchase, enable customer to get the best value of the products, enhance the competitiveness;

Professional black filter, visible light has an excellent filter role, high transmittance to infrared light;

≤±4°auto focus circuit, voice prompted calibration,180° adjustable angle;

Alarming mode to intercept two adjacent beams simultaneously can avoid mistaken alarm caused by flying bird, butterfly and falling leaf intercepts single infrared beam through protection area;

Good anti-interference, unique software setting, specific device choose and buy as well as professional structure design, can eliminate jamming of strong light and anti-thunder/electromagnetic-jamming;

Strict anti-destroyed ability: when the guardrail screen is moved by human, the power line of receiving terminal is cut off and the power line or signal line of receiving terminal is cut off, the alarming signal output circuit will automatically output alarming signal

Model: SBW-04S010/SBW-04S030/SBW-04S060/SBW-04S100

Alarm range: 10M/30M/60M/100M

Max beam range: 60M/180M/360M/600M

Beam number: 4 beams

Operating current: 45mA

Transmitter: 40mA

Power supply:DC9-18V, 12VDC recommend

Trigger time (ms):40ms

Signal output mode: Wired (NC/NO)

Operating condition:
