Product Description

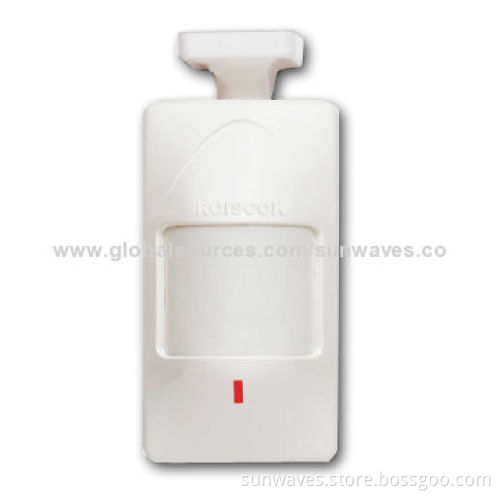

Dual infrared detector

Dual sensor motion detector with RA93, it is another detector in Roiscok's products line which is designed special for residential installation

Strong ability to catch signal, low false and lost alarm rate

Low power consumption and true temperature compensation

Smart manufacture and elegant appearance

Stable performance and long usage lifespan

Proper to both wall and ceiling mounting

Easy to design and install

Equipped with RK92 swivel bracket

Features:

Dual passive infrared detective technology
Microprocessor design improves false alarm immunity
True temperature compensation
Resist interference of white light
Low power consumption
High RFI immunity for false alarm prevention (25V/m, 1GHz)
Professional optical pigmented lenses
Installed on wall and ceiling/corner mounting
Suitable for swivel brackets
Convenient for installation
Pulse count is selectable
Resist fluorescent interference
Memory and form-c relay
Smart and elegant design
Ideal for residential installations

Technical parameters:

Operating voltages: 9 to 16V DC
Current: 14mA
Contacts of alarm: NC, 12V DC and 15mA
Detecting distance: 12m
Time to alarm: 2.2 seconds
Time to warm: 2 minutes
RFI characteristic: 25V/m at 10MHz to 1GHz
Operating temperatures: -5 to 50°C
Storage temperatures: -20 to 55°C
Dimensions: 107 x 58 x 39mm
Suitable swivel bracket: RA93
Height of installation range: 2.3 to 2.5m
Coverage: 10m

Dual passive infrared detective technology

Microprocessor design improves false alarm immunity

True temperature compensation

Resist interference of white light

Low power consumption

High RFI immunity for false alarm prevention (25V/m, 1GHz)

Professional optical pigmented lenses

Installed on wall and ceiling/corner mounting

Suitable for swivel brackets

Convenient for installation

Pulse count is selectable

Resist fluorescent interference

Memory and form-c relay

Smart and elegant design

Ideal for residential installations

Operating voltages: 9 to 16V DC

Current: 14mA

Contacts of alarm: NC, 12V DC and 15mA

Detecting distance: 12m

Time to alarm: 2.2 seconds

Time to warm: 2 minutes

RFI characteristic: 25V/m at 10MHz to 1GHz

Operating temperatures: -5 to 50°C

Storage temperatures: -20 to 55°C

Dimensions: 107 x 58 x 39mm

Suitable swivel bracket: RA93

Height of installation range: 2.3 to 2.5m

Coverage: 10m
